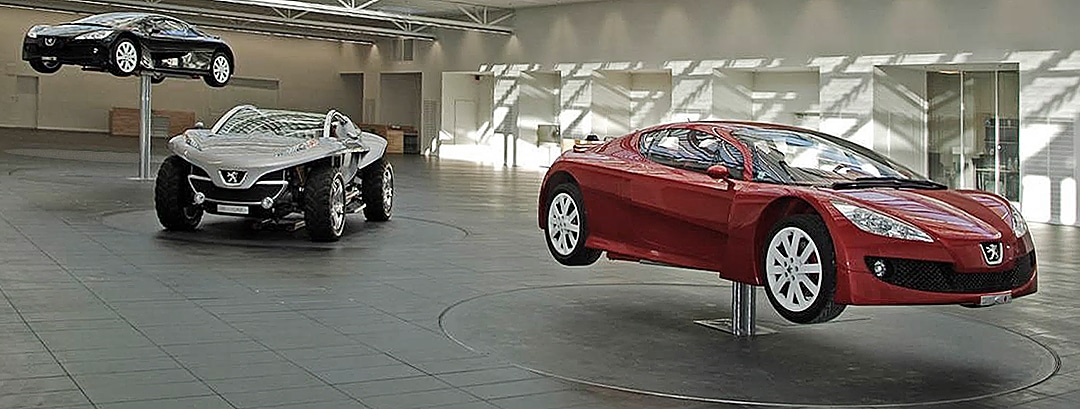

Cars in the showroom on rotatable 1-Ram lifts (see special solutions)
Lifts for Cars & Vans
Lift capacities from 3 to 6.5 tons
With load capacities ranging from 3 to 6.5 tons—and available as one-, two-, or multi-ram versions—all vehicles in the passenger car and light commercial vehicle segment can be lifted easily for any type of application. A wide range of available support systems covers all possible use cases.
Various designs, such as the standard single-stage solution, telescopic versions, specially modified models for installation in continuous concrete pits, intermediate floors, car wash areas, existing foundations, etc., as well as the option to install all lifts flush with the floor, ensure the optimal solution for every application.
JAB offers a very broad and comprehensive product range in the passenger car segment. For all types of work, every vehicle fleet, different installation requirements, and every budget, J. A. Becker provides the right product.
1-Ram Lift Type
Whether for tire changes, use in wash bays, or bodywork—always the right choice.
Thanks to their slim and intelligent design, the JAB 1-Ram lifts of the “DuoRam” series are extremely robust, rigid, and durable, offering maximum accessibility in and around the vehicle.
All this while requiring only minimal installation space.
Features and Benefits:
- Maximum redundant safety
- The lean design guarantees minimal follow-up costs
- Extremely robust and torsion-resistant due to 2 x full material guide rods
- Anti-twist protection over the entire stroke
- Load transfer via frame into floor slab

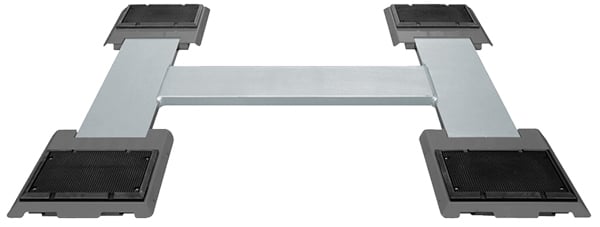

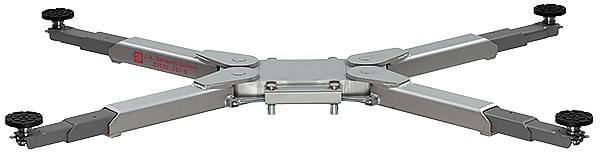

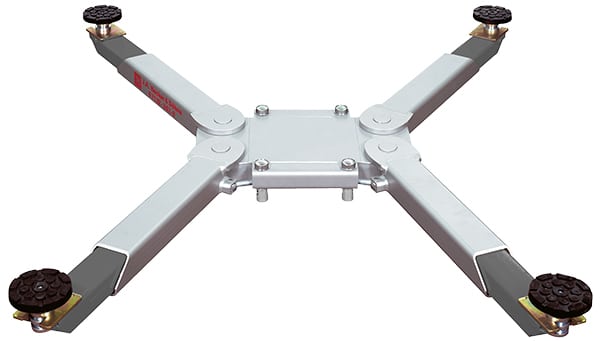

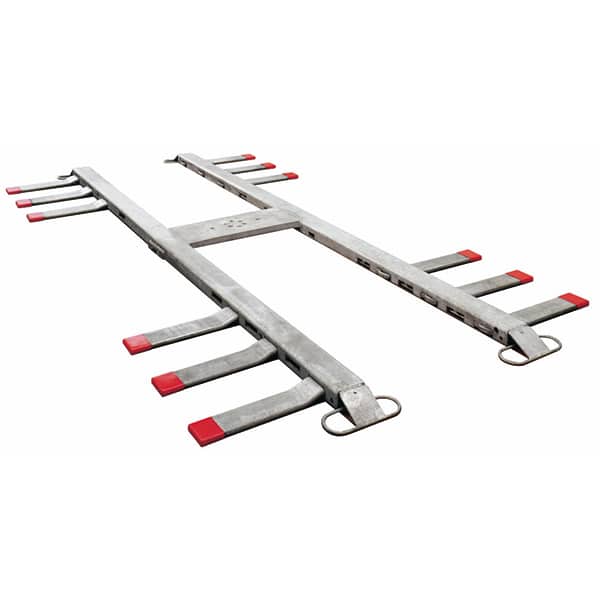

Carrier Bridges
The large selection of available carrier bridges guarantees the optimum solution for every application.

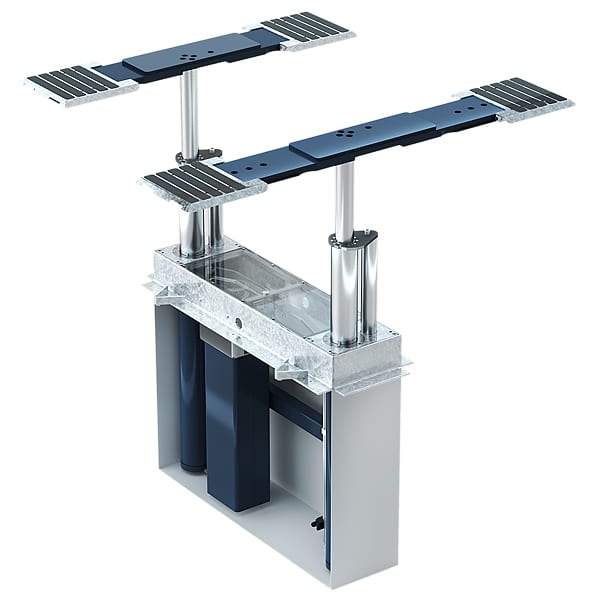

2-Ram Lift Type Standard
The workshop classic—robust, slim, and smart.

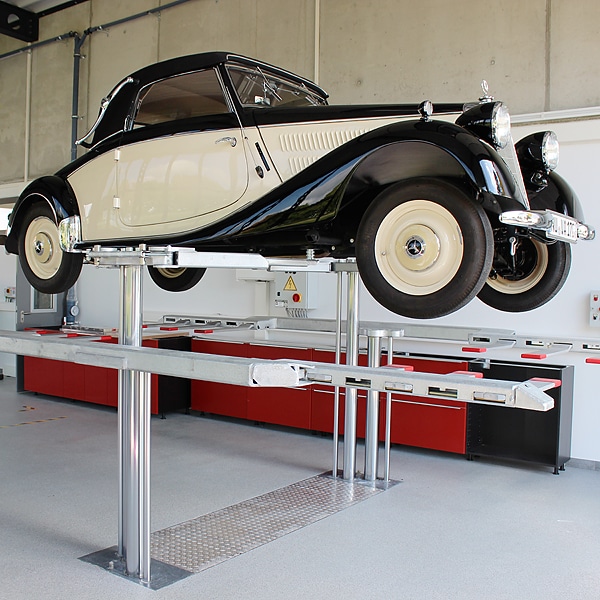

The 2-Ram lift, available in a wide variety of versions, is the classic solution in workshops. Thanks to its versatile applications, it can be found at different workstations—each adapted to specific requirements.
JAB 2-Ram lifts of the “TwinRam” series come standard with directly acting high-pressure cylinders, separate guide rods, and a wear-free crossbar for synchronization.
This clever, slim, and robust design ensures maximum durability with minimal operating, service, and maintenance costs.
The load is transferred via the foundation frame into the floor slab, resulting in minimal planning and construction costs. All lifts are also available in flush-mounted versions.
This lift is always the right choice.

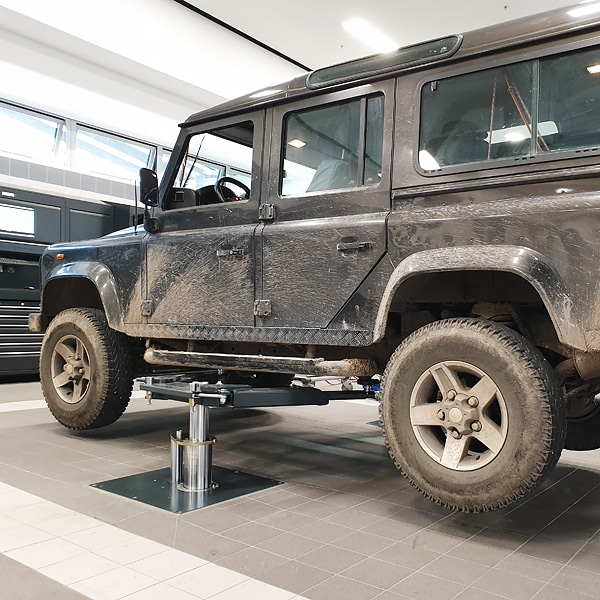

2-Ram Lift Type
Telescopic Version
A wide range of special versions—perfectly suited for integration into various building layouts and requirements
For the installation of the lift in cases of
- limited installation space,
- high groundwater levels, or
- in intermediate floors,
there are two different telescopic versions available.
Depending on the specific application and design, either a variant with a mechanical cross-connection (“TwinRam Tele”) or a completely flexible version without any cross-connection (“TwinRam Tele-VH”) can be used.
2-Ram Lift Type

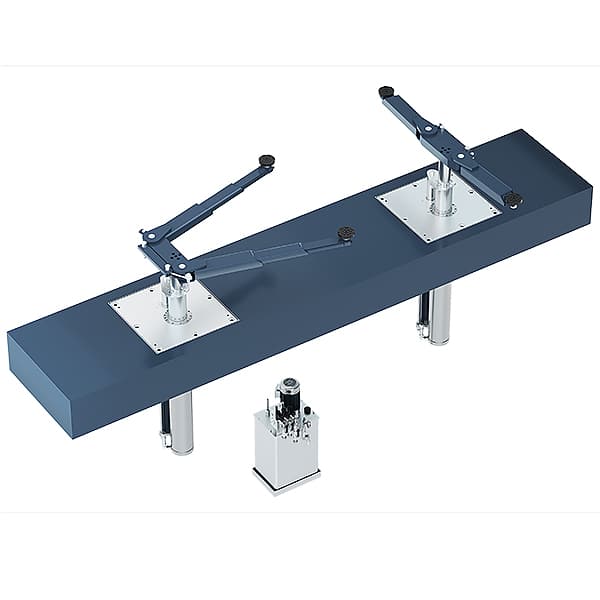

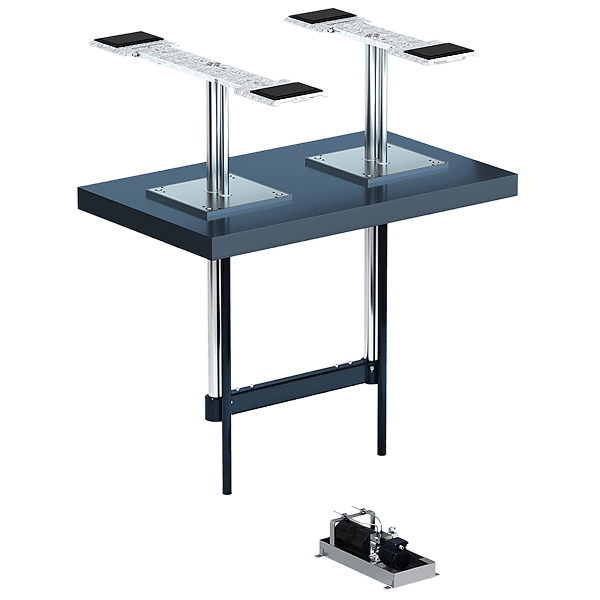

TwinRam for Installation in Ceiling
Standard lift for installation in intermediate floors.
Installing a modified “TwinRam” standard lift with individual mounting plates into an intermediate floor is a viable option if there is sufficient installation depth.
Since the load transfer in all JAB lifts is standardly directed into the floor slab of the storey, this provides a technically optimal and economically ideal solution.
The design with individual mounting plates instead of a continuous foundation frame enables installation in cored holes.

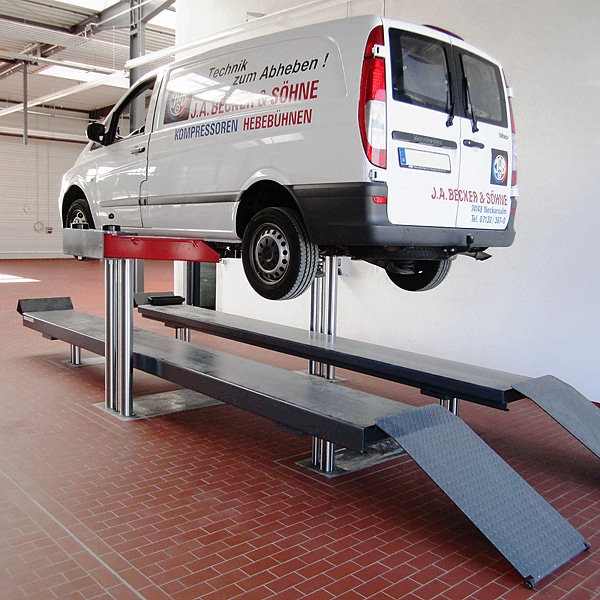

2-in-1-Lifts
with Post Lift Function
Ideal for your workshop’s reception area.
Simply drive on, inspect with the customer, and start working. Thanks to the additional lift function and a wide variety of support options, the reception process is quick and easy.
Two combined lifts at one workstation make quick vehicle lifting easier. The main lift raises the vehicle by the wheels, while the post lift raises it wheel-free.
Solutions range from floor-mounted drive-up rails and flat beams to recessed models with pneumatic floor compensation. Or—exclusively available from JAB—with Essmann supports on the main lift and swing-arm supports on the post lift. This enables complete underbody clearance.
We make your daily work easier—with the right lifting technology solution tailored exactly to your workshop needs.
2-Ram Lift Type
MultiRam
Just the right choice when you need multiple lifts in your workshop.
MultiRam—this is flexibility. From installation and operation to optional expansion.
With JAB’s most flexible lift concept, various lift workstations are installed in a continuous concrete channel instead of individual foundations or steel cassette.
The foundation frame and lift construction are designed so that 1- and 2-post lifts with load capacities from 3.0 tons to 6.5 tons can be used.
To achieve maximum working freedom, DuoRam and TwinRam vehicle lifting systems—ideal for workshop workflows and adapted to the available space—can be placed side by side.
The lifts are clamped into the installation frame, and any resulting openings are sealed.
Fast Setup Times
Combined with a wide variety of vehicle supports and adapters, the DuoRam and TwinRam lift workstations can be quickly configured according to the vehicle type and the intended tasks.
MultiRam Lift System – JAB’s Most Flexible Lift Concept
Advantages for Car Systems:
- Low life cycle costs due to service-friendly designs with directly acting cylinders
- Easy access to seals and wipers
- Simple on-site assembly
- Little space required, maximizing workshop space utilization
Features of Car Systems:
- Load transfer via frame into floor slab
- Cassette and frame as a splitted system
- Low oil volume due to high-pressure cylinders
- Hard chrome-plated guide bars and cylinders
Modern lift solutions with great automation potential make daily tasks in your workshop faster and easier.
