Low drive-over height for reduced set-up time:

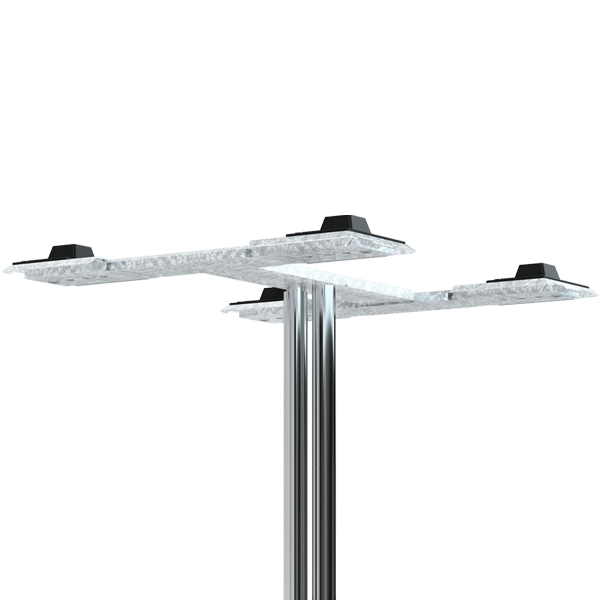

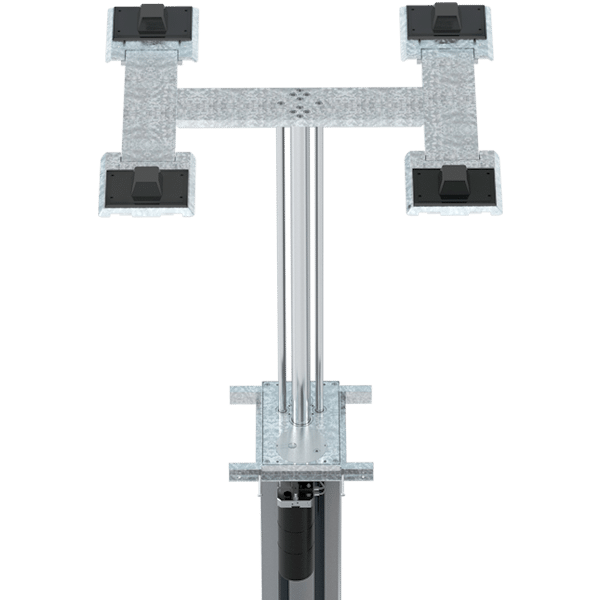

DuoRam HK 35
This carrier bridge guarantees quick, easy and safe vehicle mounting and the sliders are hot-dip galvanized as standard.
The pickup elements can be moved and are optionally available in short, medium and long (maximum movement 1,400 mm – 2,200 mm).
Load capacity: 3.500 kg
Lifting height: 1.880 mm
Traversing height: 59 mm
Installation depth: 2.350 mm
Oil quantity: 10 L
Connected load: 2 KW
Features:
- Redundant design due to two independent hydraulic cylinders
- Anti-rotation device over the entire stroke path
- Absorption of all moments by additional guide rods
- Hydraulic unit directly flanged

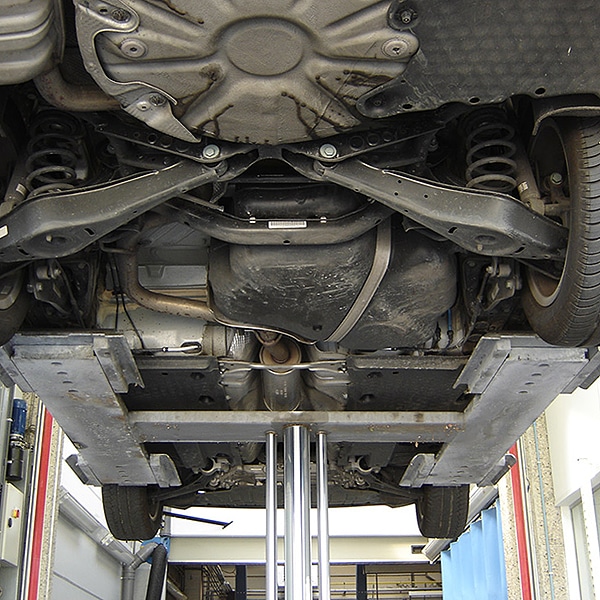

- Optimal accessibility to wheels, brakes, engine compartment, vehicle interior and body for any repair and maintenance purposes
- Minimum setup times
- Low crossing height
JAB lifts for Cars & Vans - benefit from our lifting tech experience in your workshop.
In our extensive product range in the field of car lifts and van lifts, load capacities from 3 tonnes to 6.5 tonnes are available.
Numerous available carrier-bridges, from single-ram, double-ram to multi-ram versions, cover all different applications.
We will be happy to advise you on solutions that are suitable for your area, your workshop or your service point.
