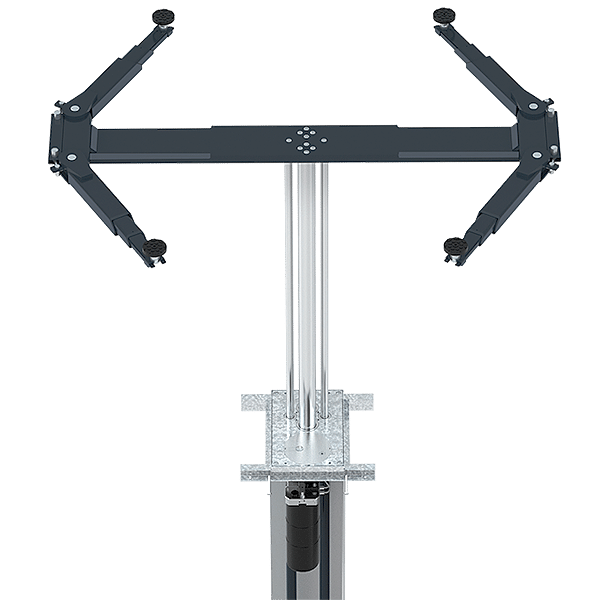

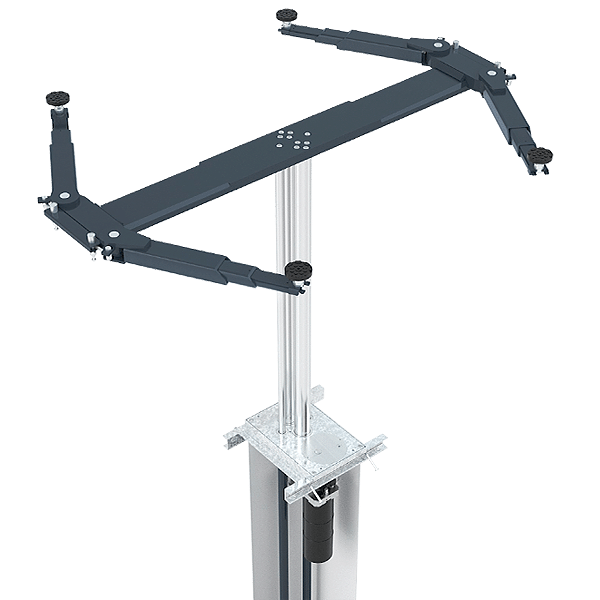

DuoRam K 35-S2:
ideal lift suitable for activities on the vehicle floor assembly
This girder bridge with double telescopic swivel arms from the outside to the inside is ideal when activities are required on the vehicle floor assembly. Apart from the crossbeam, the vehicle underbody is just as freely accessible as with a two-post or two-ram lift.
Load capacity: 3.500 kg
Lifting height: 1.880 mm
Traversing height: 50 mm
Installation depth: 2.350 mm
Oil quantity: 10 L
Connected load: 2 KW
Features:

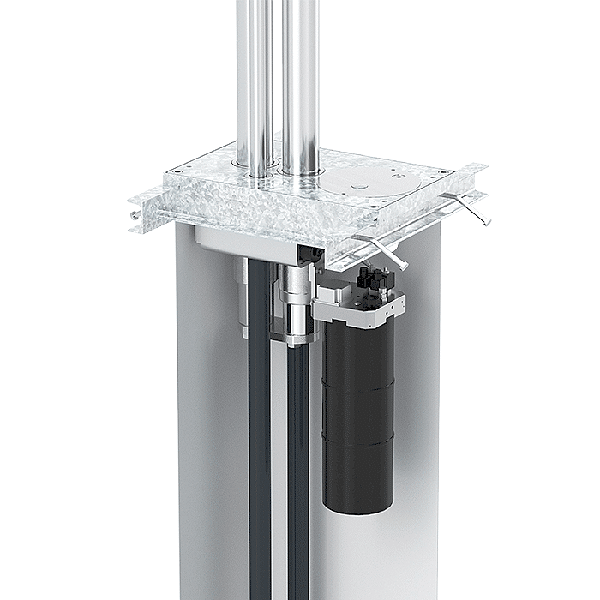

- Redundant design due to two independent hydraulic cylinders
- Anti-rotation device over the entire stroke path
- Absorption of all moments by additional guide rods
- Hydraulic unit directly flanged
- Optimal accessibility to wheels, brakes, engine compartment, vehicle interior and body for any repair and maintenance purposes
- Best possible underbody accessibility
JAB lifts for Cars & Vans - benefit from our lifting tech experience in your workshop.
In our extensive product range in the field of car lifts and van lifts, load capacities from 3 tonnes to 6.5 tonnes are available.
Numerous available carrier-bridges, from single-ram, double-ram to multi-ram versions, cover all different applications.
We will be happy to advise you on solutions that are suitable for your area, your workshop or your service point.
