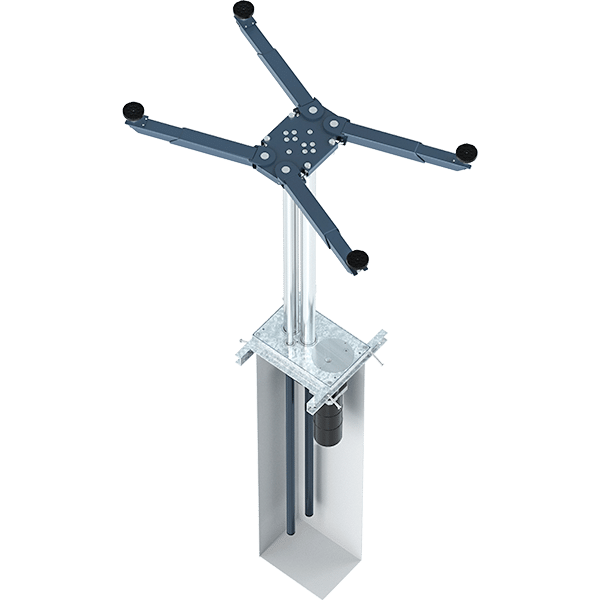

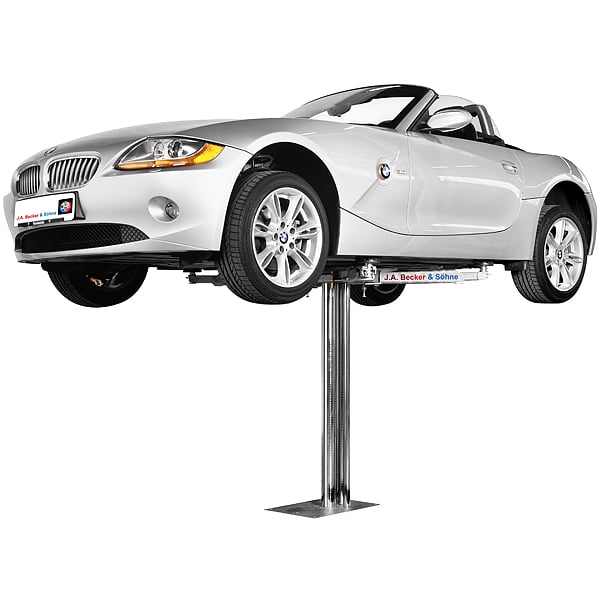

DuoRam K23/3: 1-Ram lift for vehicles with low ground clearance

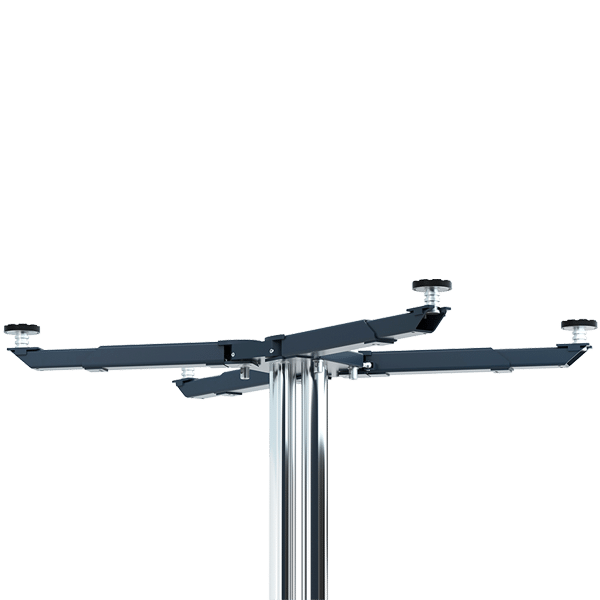

The 1-ram lift DuoRam K23/3 with 1-way telescopic swivel arms is ideal for all work on the vehicle body as well as on wheels and brakes.
Load capacity: 3.000 kg
Lifting height: 1.880 mm
Traversing height: 87 mm
Installation depth: 2.350 mm
Oil quantity: 10 L
Connected load: 2 KW
Due to the low drive-over height, it is ideally suited for lifting vehicles with low ground clearance.
Features:
- Redundant design due to two independent hydraulic cylinders
- Anti-rotation device over the entire stroke path
- Absorption of all moments by additional guide rods
- Hydraulic unit directly flanged
- Optimal accessibility to wheels, brakes, engine compartment, vehicle interior and body for any repair and maintenance purposes
- Low crossing height
JAB lifts for Cars & Vans - benefit from our lifting tech experience in your workshop.
In unserem umfangreichen Produktprogramm im Bereich Pkw-Hebebühnen sowie Transporter-Hebebühnen stehen Ihnen Tragfähigkeiten von 3 Tonnen bis 6,5 Tonnen zur Verfügung.
Zahlreiche verfügbare Aufnahmesystemen, von Einstempel-, Zweistempel- bis Mehrstempel-Ausführungen, decken alle unterschiedlichen Anwendungsfälle ab.
Gern beraten wir Sie zu Lösungen, die für Ihren Bereich, Ihre Werkstatt, Ihren Service-Point passen.
