TwinRam 35 AE 1300 – optimal lift for direct reception and washing area
2-ram lift equipped with proven Essmann technology.
The TwinRam 35 AE is optimally suited for direct reception and the washing area.
Load capacity: 3.500 kg
Punch spacing: 1.300 mm
Drive-up height: 20 mm
Installation depth: 2.350 mm
Oil quantity: 10 L
Connected load: 2 KW

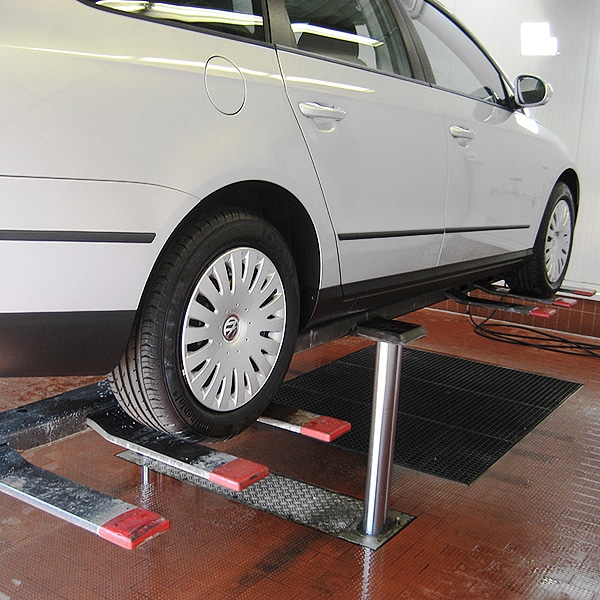

There is no need to drive up by ramp, as the vehicles are picked up on the 20mm flat spring blades.
The vehicle centers itself and is automatically secured against rolling.
Features:
- Redundant design due to two independent hydraulic cylinders
- Anti-rotation device over the entire stroke path
- All forces are absorbed by the foundation frame
- Drive unit and all components easily accessible
- Large recording area
- Short setup times
JAB lifts for Cars & Vans - benefit from our lifting tech experience in your workshop.
In our extensive product range in the field of car lifts and van lifts, load capacities from 3 tonnes to 6.5 tonnes are available.
Numerous available carrier-bridges, from single-ram, double-ram to multi-ram versions, cover all different applications.
We will be happy to advise you on solutions that are suitable for your area, your workshop or your service point.
