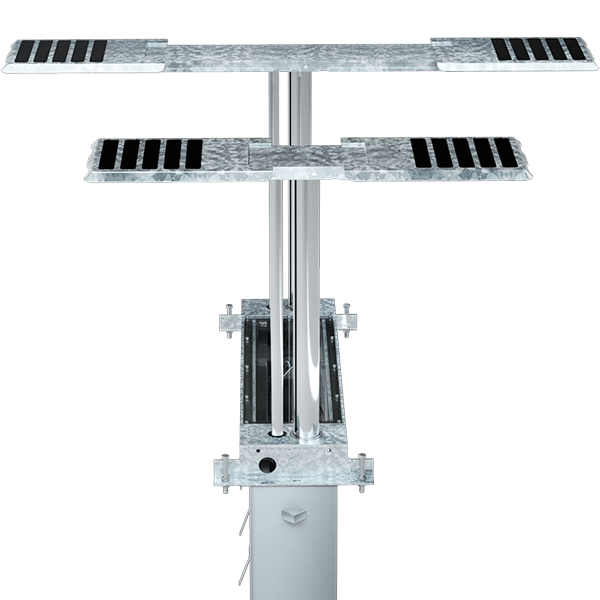

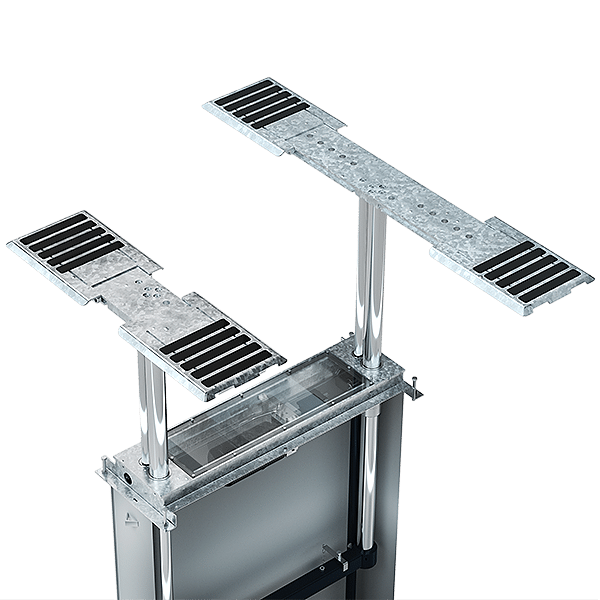

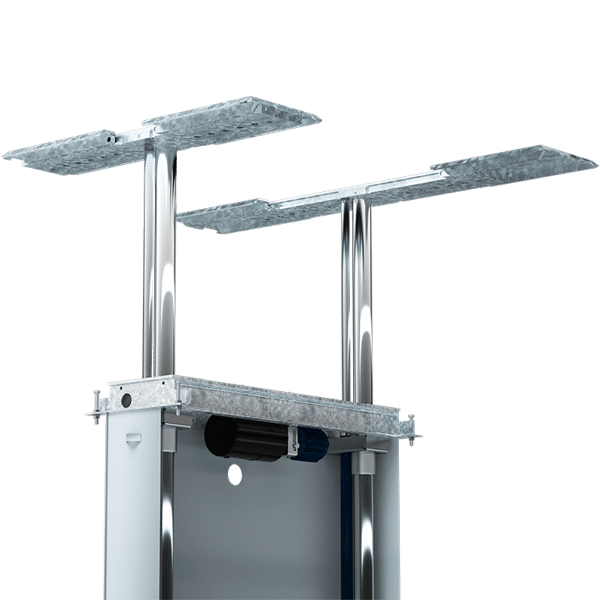

TwinRam 35 – the lifting platform allrounder
Electro-hydraulic lift with flat girder bridge for a quick and safe pick-up of the vehicles. This lift simplifies vehicle pick-up, reduces set-up time and provides optimum accessibility to all areas of the vehicle.
The TwinRam 35 can be used anywhere in the workshop and is a real all-rounder thanks to its minimal space requirements.
Load capacity: 3.500 kg
Punch spacing: 1.300 mm
Traversing height: 68 mm
Installation depth: 2.350 mm
Oil quantity: 10 L
Connected load: 2 KW
The sliders of the flat girder bridge are hot-dip galvanized as standard.
Features:
- Redundant design due to two independent hydraulic cylinders
- Anti-rotation device over the entire stroke path
- All forces are absorbed by the foundation frame
- Drive unit and all components easily accessible
- Minimum crossing height
JAB lifts for Cars & Vans - benefit from our lifting tech experience in your workshop.
In our extensive product range in the field of car lifts and van lifts, load capacities from 3 tonnes to 6.5 tonnes are available.
Numerous available carrier-bridges, from single-ram, double-ram to multi-ram versions, cover all different applications.
We will be happy to advise you on solutions that are suitable for your area, your workshop or your service point.
