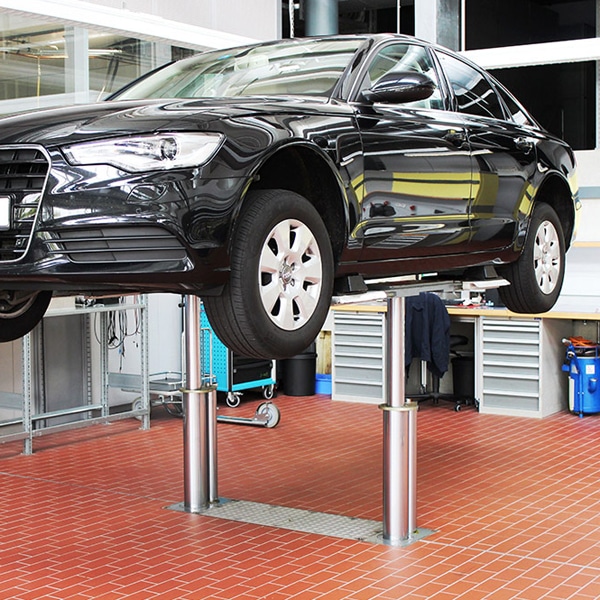

TwinRam 35 Tele – ideally suited lift for complicated installation situations

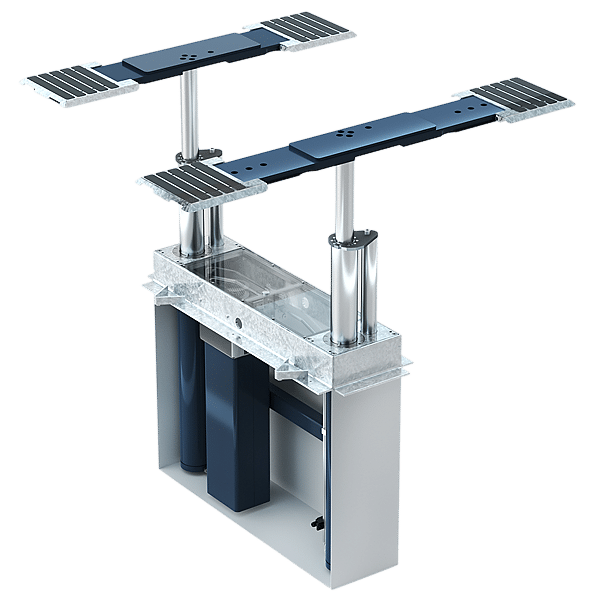

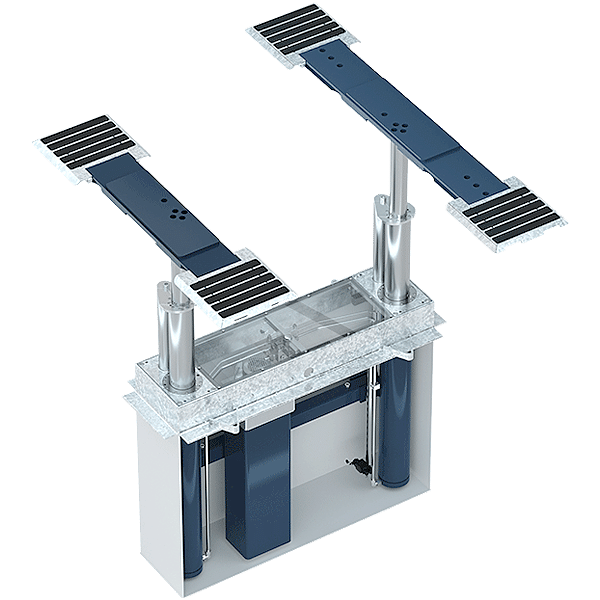

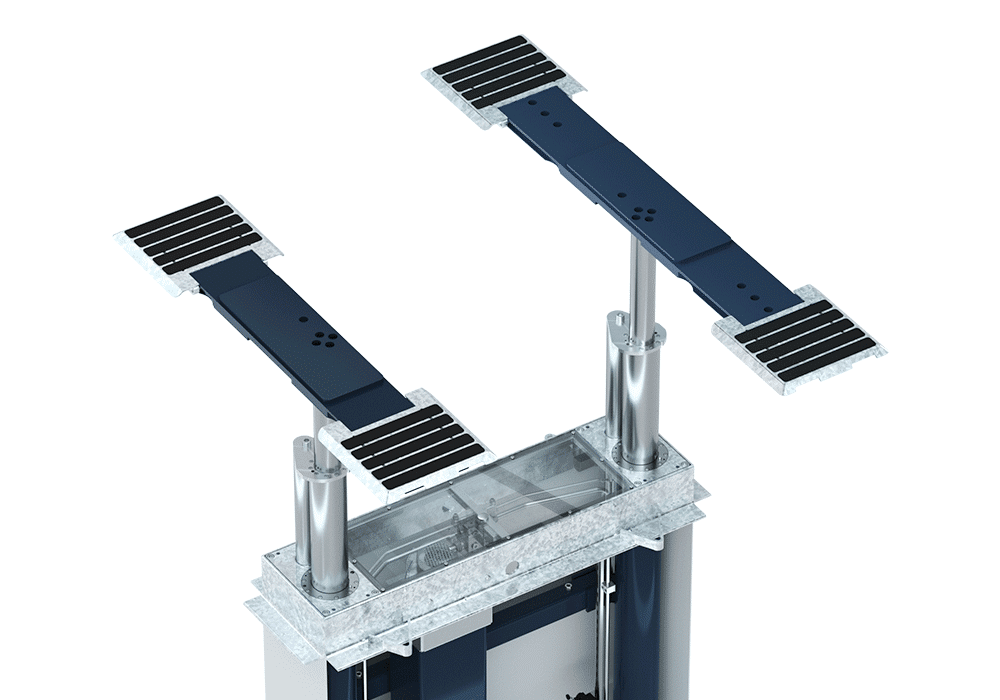

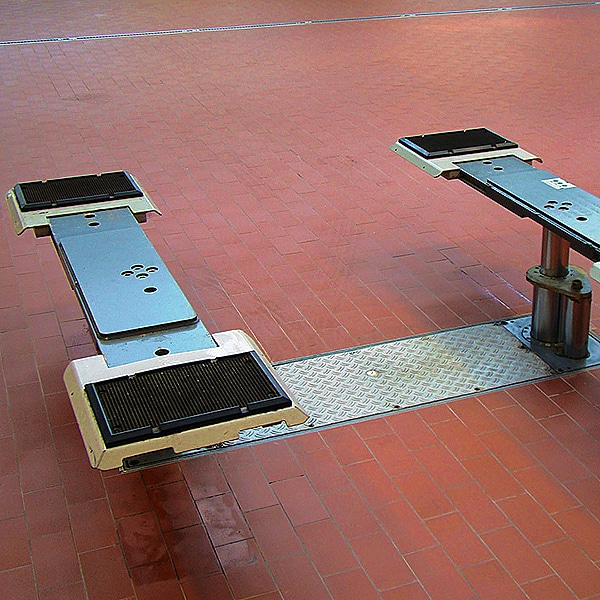

The electro-hydraulic telescopic lift TwinRam 35 Tele with flat girder bridge and adjustable slides is ideally suited for complicated installation situations or in use as a true all-rounder due to its low installation depth and thus low space requirement.
Load capacity: 3.500 kg
Punch spacing: 1.300 mm
Traversing height: 65 mm
Installation depth: 1.280 mm
Oil quantity: 50 L
Connected load: 4 KW
The TwinRam 35 Tele simplifies vehicle pick-up, reduces setup time, and provides optimum accessibility to all areas of the vehicle.
Features:
- Minimum installation depth
- Anti-rotation device over the entire stroke path
- All forces are absorbed by the foundation frame
- Drive unit and all components easily accessible
- Minimum crossing height
JAB lifts for Cars & Vans - benefit from our lifting tech experience in your workshop.
In our extensive product range in the field of car lifts and van lifts, load capacities from 3 tonnes to 6.5 tonnes are available.
Numerous available carrier-bridges, from single-ram, double-ram to multi-ram versions, cover all different applications.
We will be happy to advise you on solutions that are suitable for your area, your workshop or your service point.
