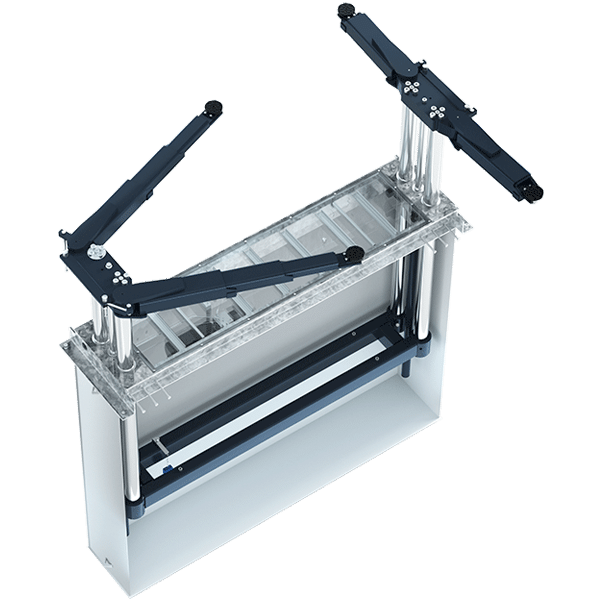

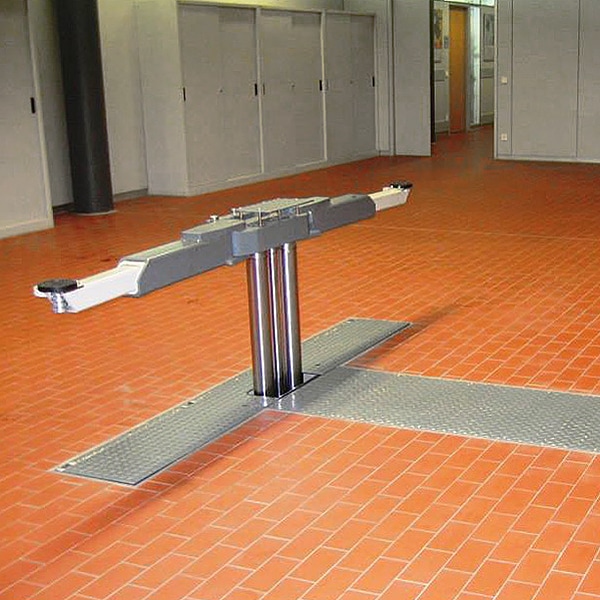

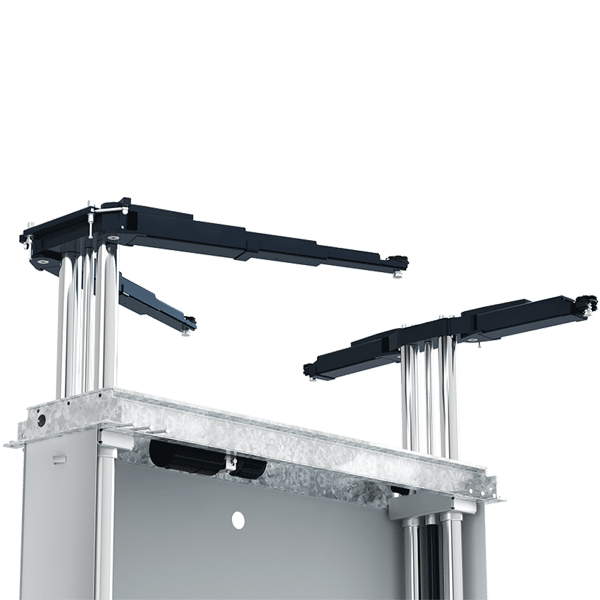

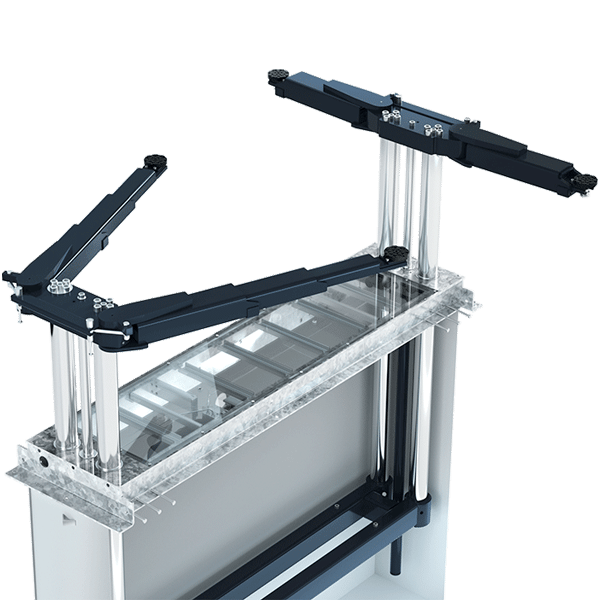

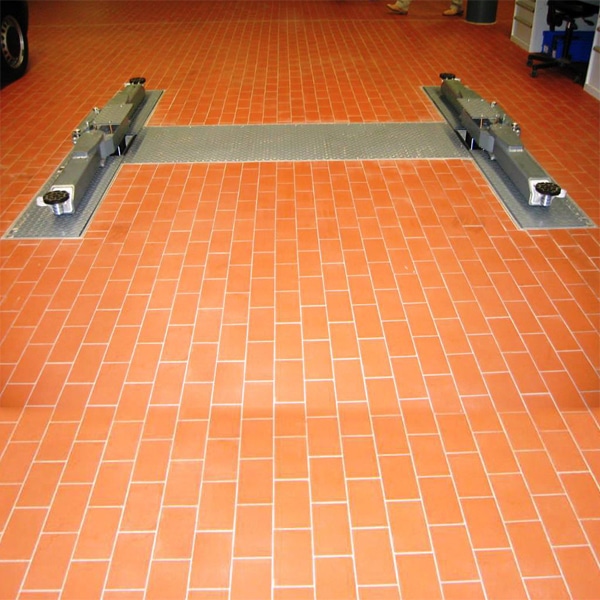

TwinRam 55 S2/2500 – suitable lift for all repair work that arises
Lift with double telescopic swivel arms and height-adjustable support plates.
The swivel arm lift is an excellent choice for use in all repair work that arises.
Load capacity: 5.500 kg
Punch spacing: 2.500 mm
Underswing height: 97 mm
Installation depth: 2.350 mm
Oil quantity: 10 L
Connected load: 2 KW
The lifted vehicle is almost unrestrictedly accessible, ensuring optimum working conditions.
Features:
- Redundant design due to two independent hydraulic cylinders
- Anti-rotation device over the entire stroke path
- All forces are absorbed by the foundation frame
- Drive unit and all components easily accessible
- Large recording area
- Optimal accessibility to the underbody
JAB lifts for Cars & Vans - benefit from our lifting tech experience in your workshop.
In our extensive product range in the field of car lifts and van lifts, load capacities from 3 tonnes to 6.5 tonnes are available.
Numerous available carrier-bridges, from single-ram, double-ram to multi-ram versions, cover all different applications.
We will be happy to advise you on solutions that are suitable for your area, your workshop or your service point.
