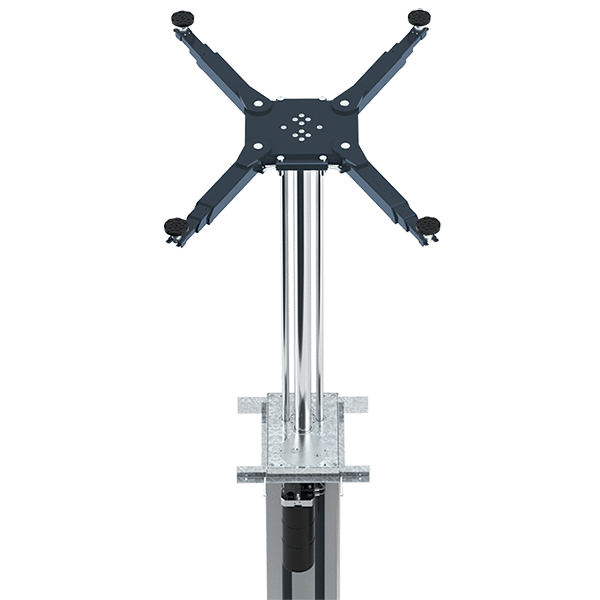

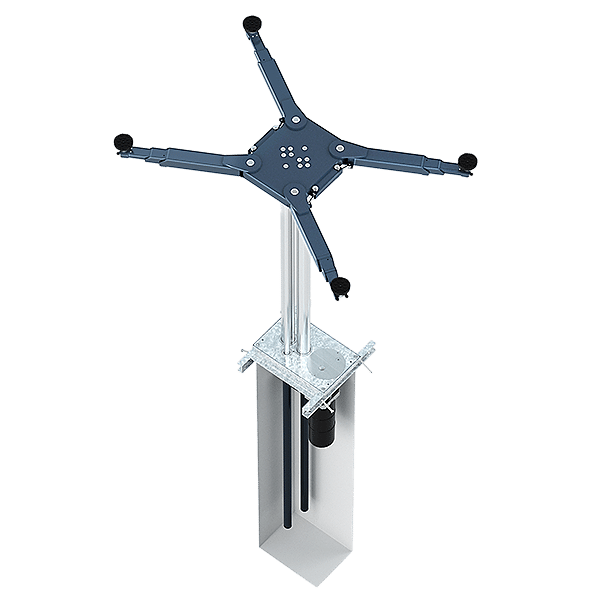

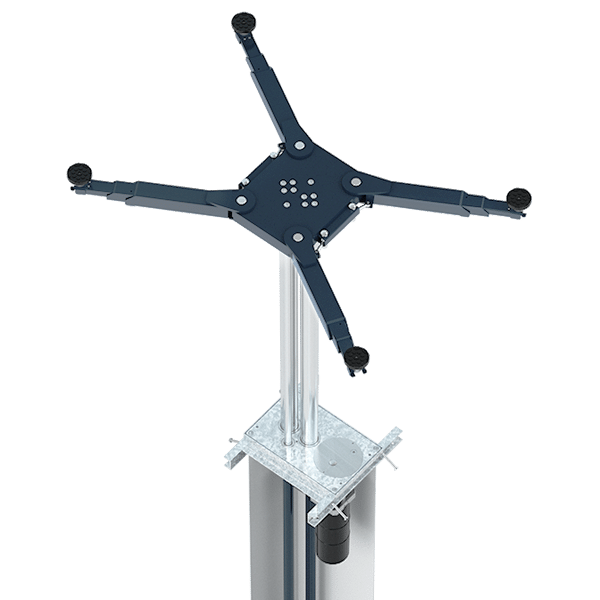

DuoRam K36.2:
the lift for almost every car & van

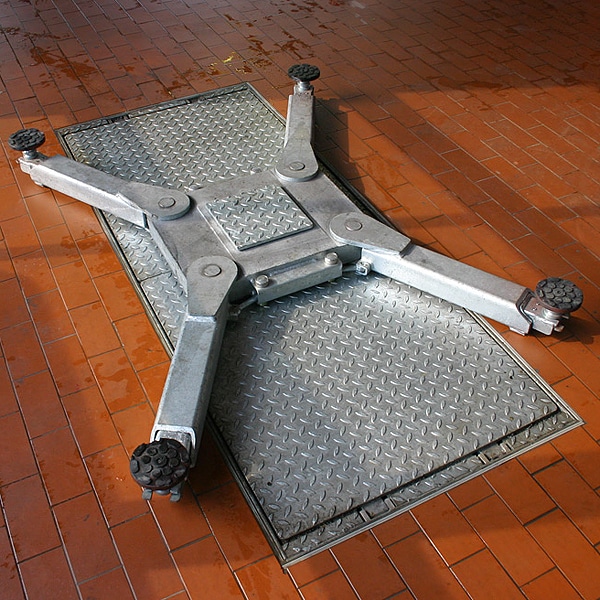

With the double telescopic swivel arms of the DuoRam K 36.2, it is possible to pick up almost all cars and vans. The JAB plug-in mounting system ensures a quick exchange of the different, vehicle-specific – also form-fit – mounts.
Load capacity: 3.500 kg
Lifting height: 1.880 mm
Traversing height: 109 mm
Installation depth: 2.350 mm
Oil quantity: 10 L
Connected load: 2 KW
Features:
- Redundant design due to two independent hydraulic cylinders
- Anti-rotation device over the entire stroke path
- Absorption of all moments by additional guide rods
- Hydraulic unit directly flanged

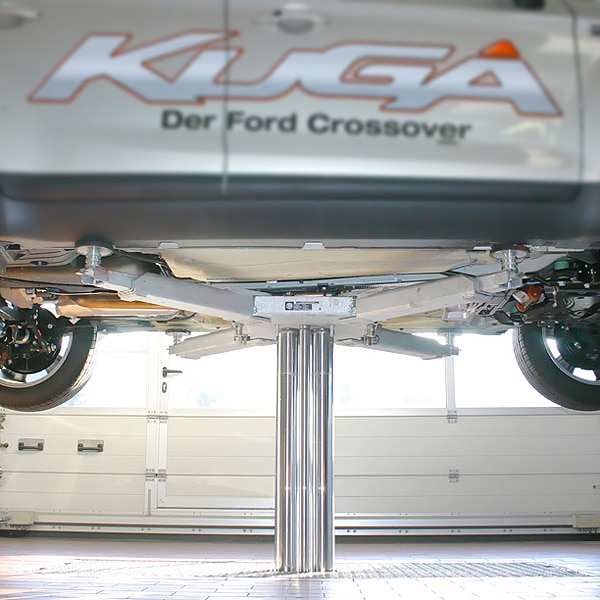

- Optimal accessibility to wheels, brakes, engine compartment, vehicle interior and body for any repair and maintenance purposes
- Great recording variety
JAB lifts for Cars & Vans - benefit from our lifting tech experience in your workshop.
In our extensive product range in the field of car lifts and van lifts, load capacities from 3 tonnes to 6.5 tonnes are available.
Numerous available carrier-bridges, from single-ram, double-ram to multi-ram versions, cover all different applications.
We will be happy to advise you on solutions that are suitable for your area, your workshop or your service point.
