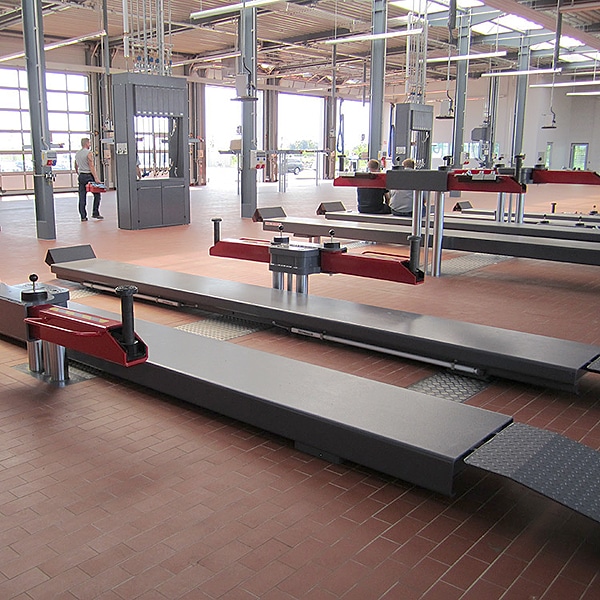

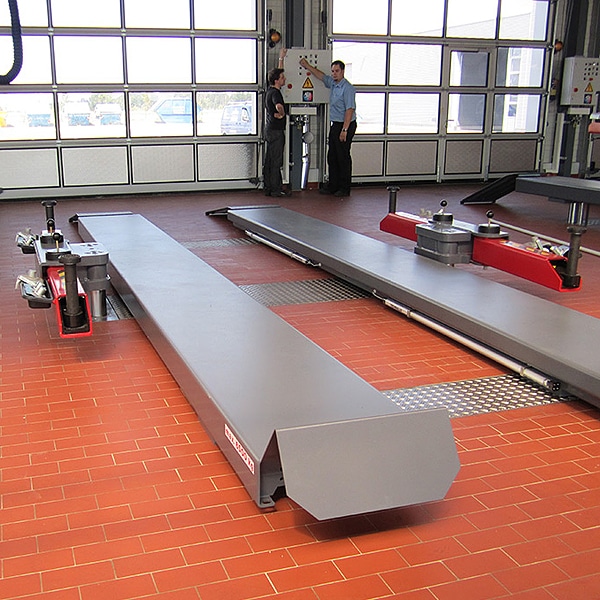

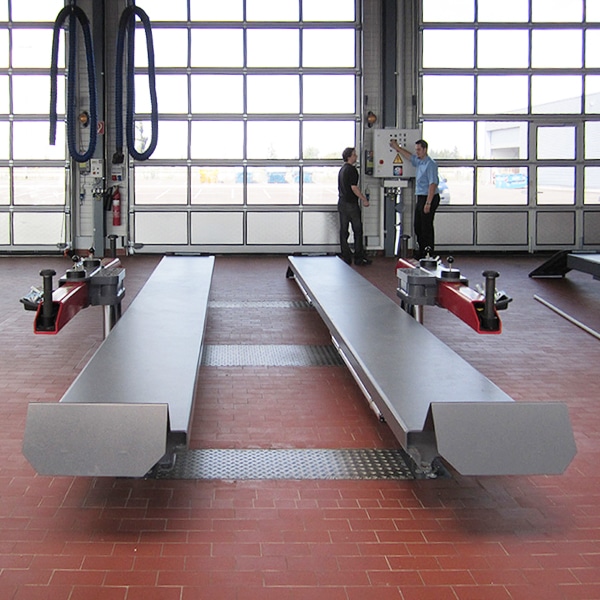

QuattroRam 65 A/N-S2 – two full-fledged lifting-platforms at one workstation.
Thanks to its afterlift with telescopic swivel arms, it is ideally suited both in the receiving area and for repairs. In combination with the very short lifting and lowering times, this lift is a true all-rounder.
Load capacity: 6.500 kg
Punch spacing transverse: 1.500 mm
Punch spacing longitudinal: 4.120 mm
Installation depth: 2.350 mm
Oil quantity: 36 L
Connected load: 3 x 2 KW

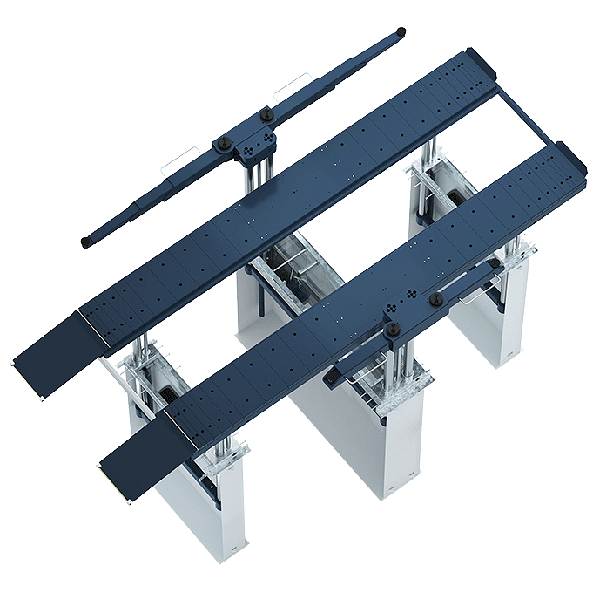

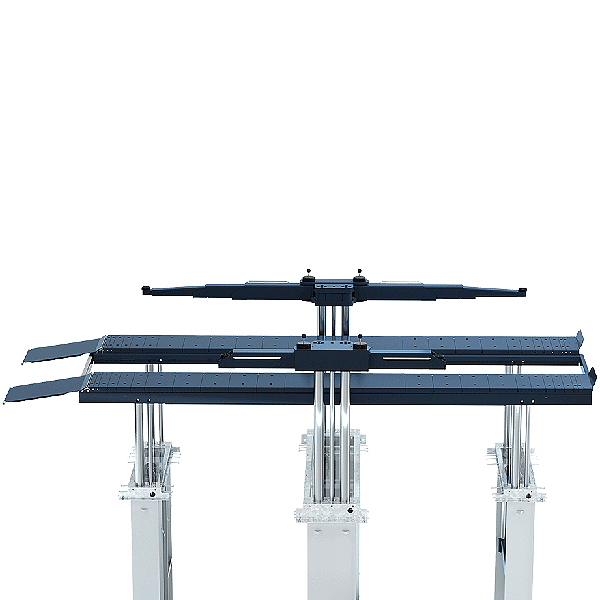

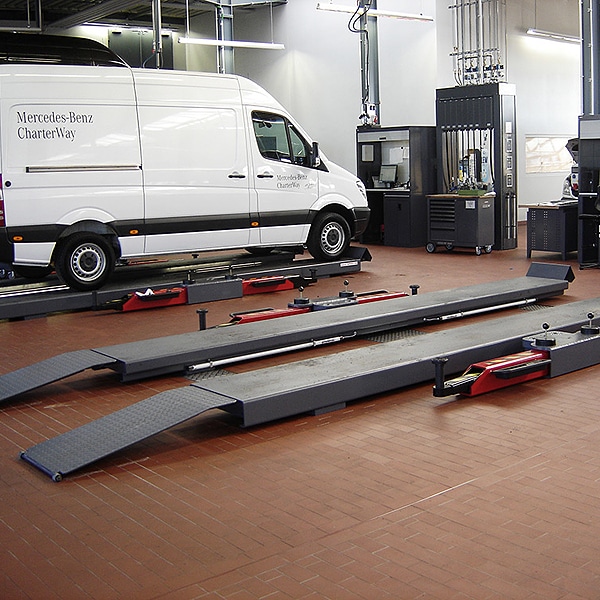

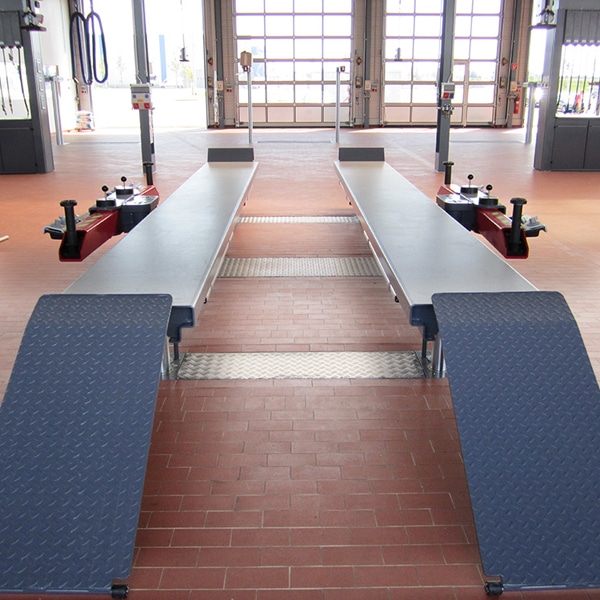

The 5,500 mm long drive-on rails with a load capacity of 6,500 kg are suitable for lifting vehicles by their wheels.

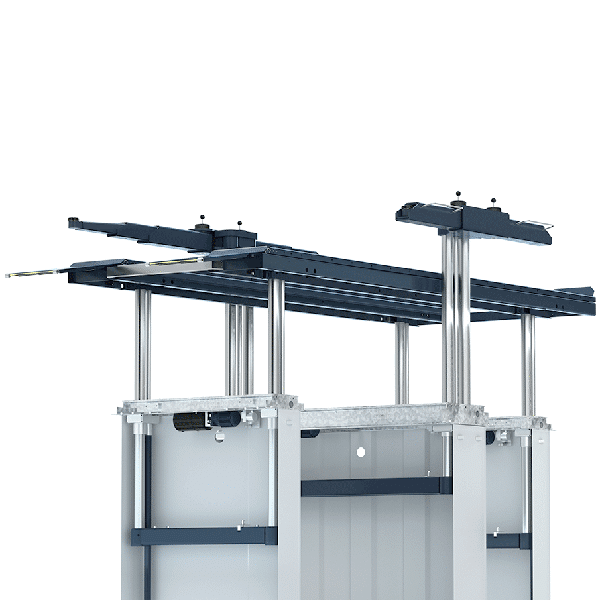

It is complemented by the swivel arms, which enable the simultaneous free lifting of both axes.
Features:
- Two individual lifting platforms
- Anti-rotation device over the entire stroke path

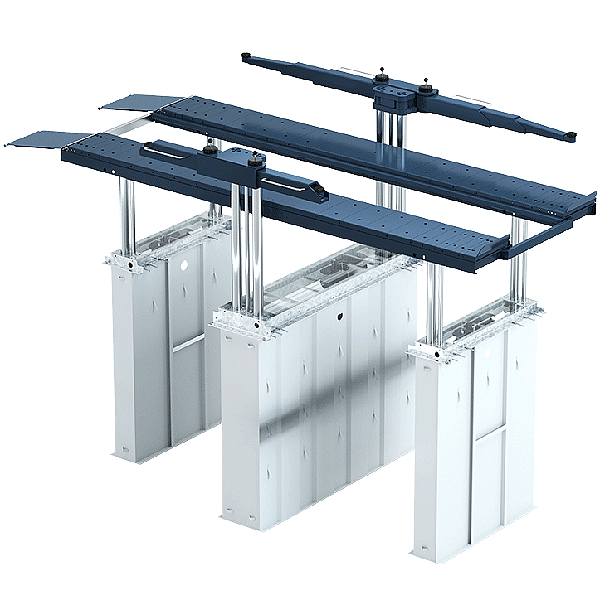

- All forces are absorbed by the foundation frame
- Drive unit and all components easily accessible
- Precise synchronization control by means of volume flow
