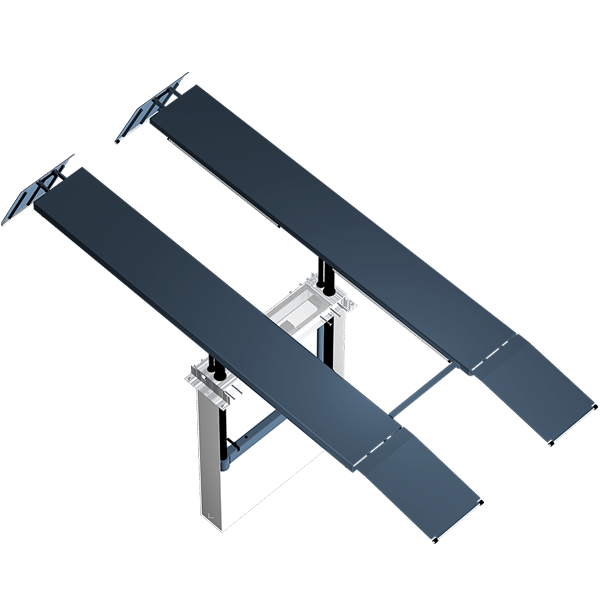

TwinRam 35 A/1500 – ideal for lowered vehicles with sports suspension
With the drive-up rails, this 2-ram lift enables problem-free lifting of everything from small cars to vans and transporters. Due to the favorable angle of the drive-up ramps, lowered vehicles or vehicles with sport chassis can even be lifted with drive-up rails resting on the ground.
Load capacity: 3.500 kg
Punch spacing: 1.500 mm
Drive-up height: 150 mm
Installation depth: 2.350 mm
Oil quantity: 10 L
Connected load: 2 KW
With integrated axle lift (see TwinRam 350 A/N), the lifting platform is particularly suitable for the receiving area.
Features:
- Redundant design due to two independent hydraulic cylinders
- Anti-rotation device over the entire stroke path
- All forces are absorbed by the foundation frame
- Drive unit and all components easily accessible
- Large recording area
- Short setup times
JAB lifts for Cars & Vans - benefit from our lifting tech experience in your workshop.
In our extensive product range in the field of car lifts and van lifts, load capacities from 3 tonnes to 6.5 tonnes are available.
Numerous available carrier-bridges, from single-ram, double-ram to multi-ram versions, cover all different applications.
We will be happy to advise you on solutions that are suitable for your area, your workshop or your service point.
