Especially suitable lift for the reception area:

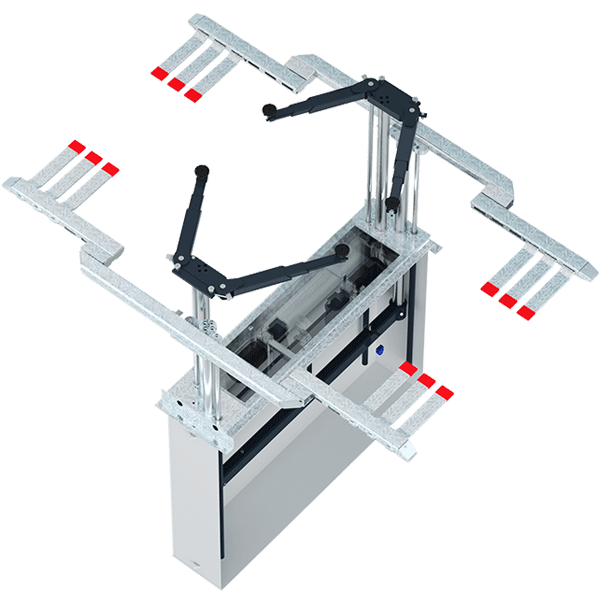

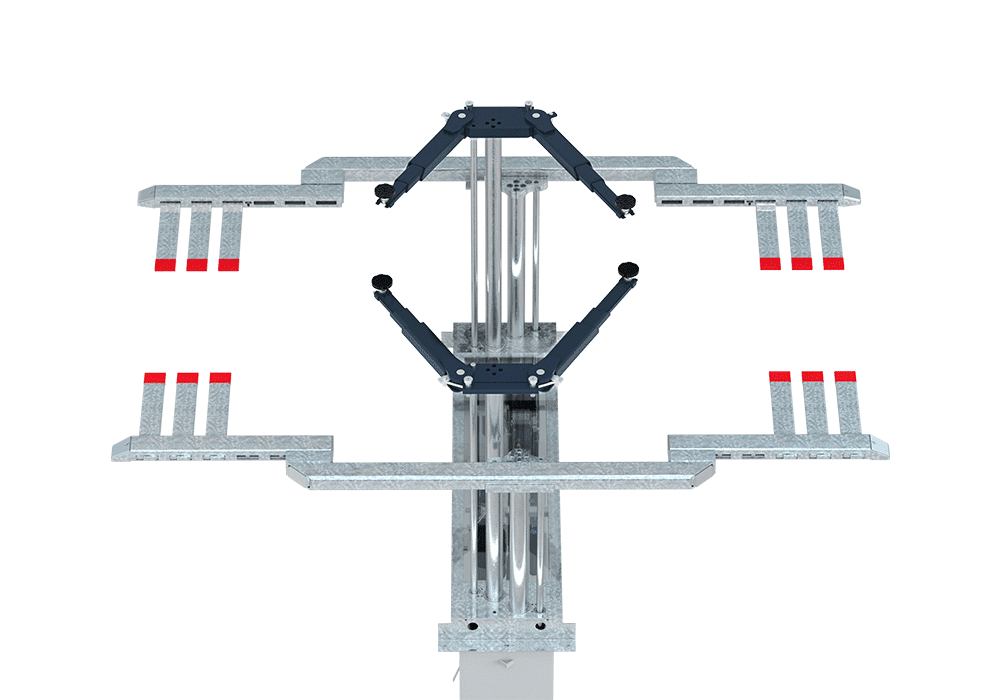

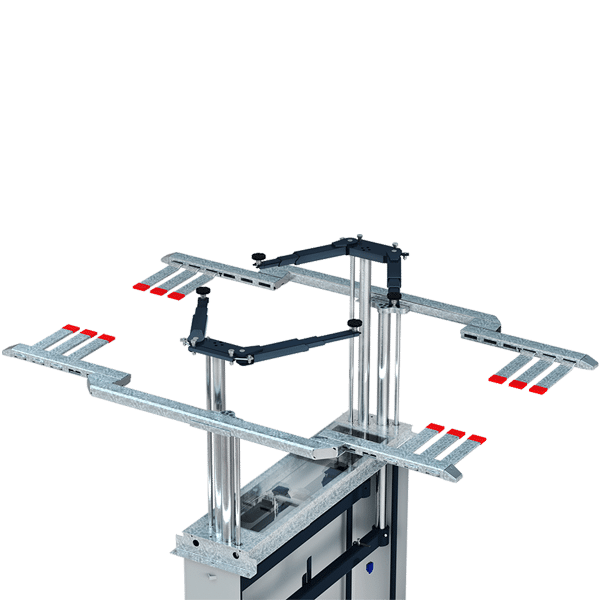

TwinRam 35 AE-S2

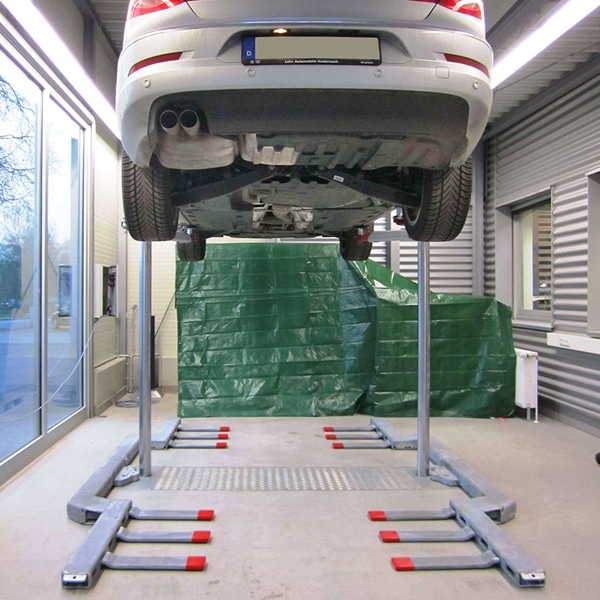

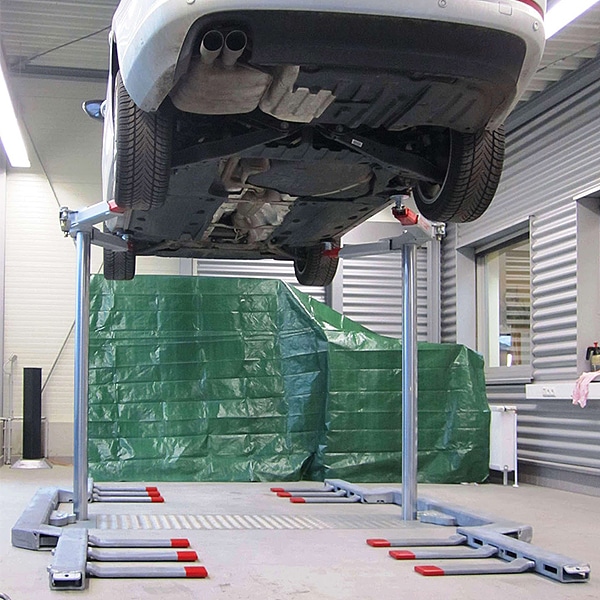

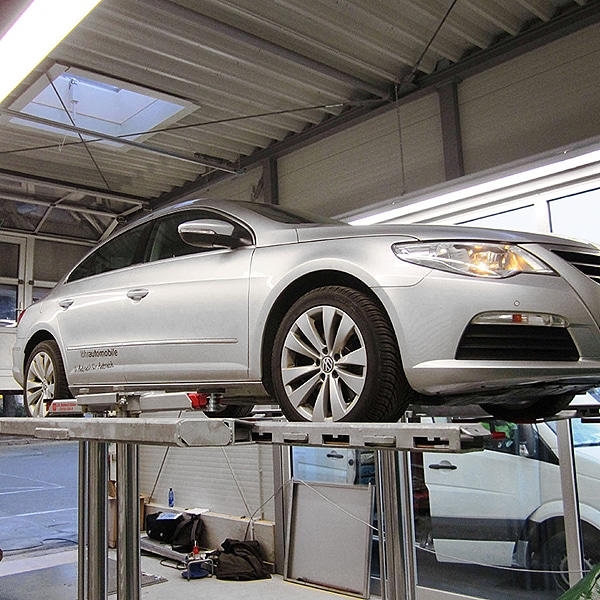

With its full-fledged afterlift, the TwinRam 35 AE-S2 offers two lifts at one workstation, making it universally applicable. The unique “Essmann” drive-on bridge is suitable for lifting vehicles by their wheels. It is complemented by the double telescopic swivel arms, which allow both axles to be lifted free at the same time, making it predestined for the receiving area.
Load capacity: 3.500 kg
Punch spacing: 2.500 / 2.300 mm
Underswing height: 98 mm
Installation depth: 2.350 mm
Oil quantity: 20 L
Connected load: 2 x 2 KW

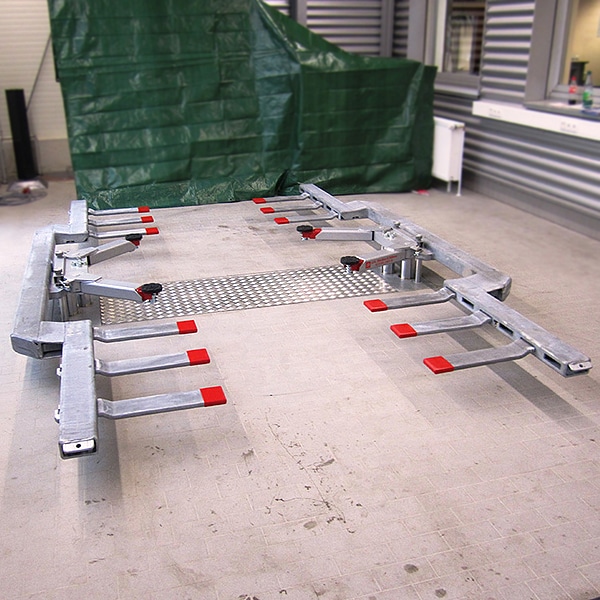

Due to the extremely flat spring leaves (20 mm drive-up height) of the “Essmann” drive-up ramp, recessed installation of the lift is not necessary. This means that the TwinRam 35 AE-S2 can also be used to easily lift vehicles with sports chassis.
The automatic wheel centering between the spring leaves also eliminates the need for roll-off protection.
Features:
- Two individual lifting platforms
- Anti-rotation device over the entire stroke path
- All forces are absorbed by the foundation frame
- Drive unit and all components easily accessible
JAB lifts for Cars & Vans - benefit from our lifting tech experience in your workshop.
In our extensive product range in the field of car lifts and van lifts, load capacities from 3 tonnes to 6.5 tonnes are available.
Numerous available carrier-bridges, from single-ram, double-ram to multi-ram versions, cover all different applications.
We will be happy to advise you on solutions that are suitable for your area, your workshop or your service point.
