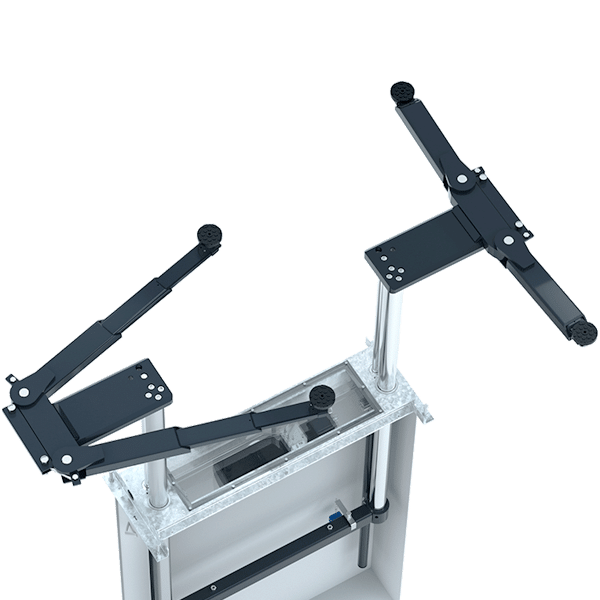

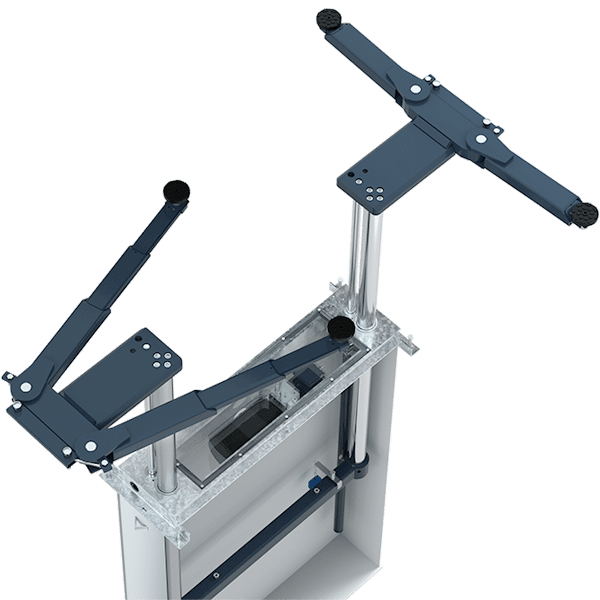

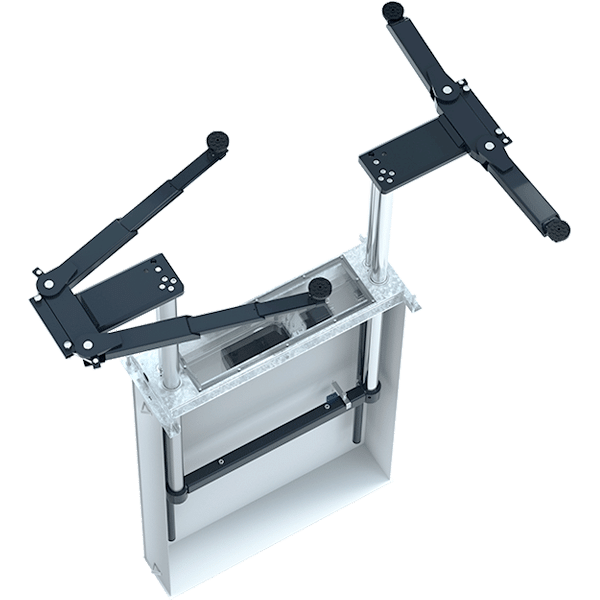

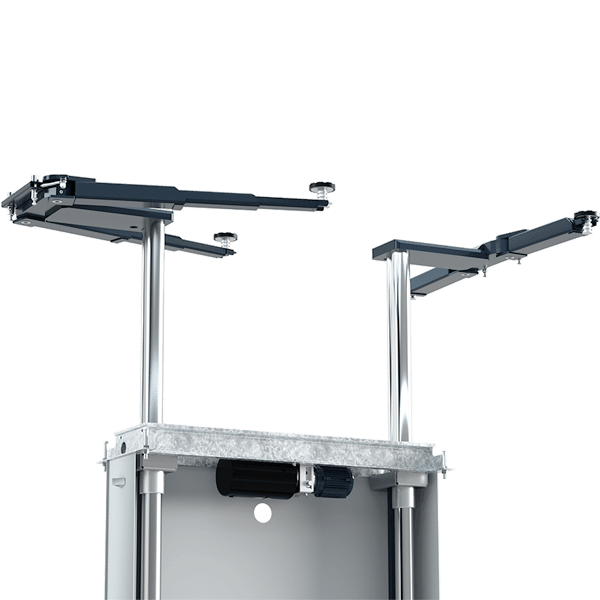

TwinRam 35 S2/1300 – ideal lift for small workshop spaces
Lift with double telescopic swivel arms and height-adjustable support plates. The swivel arm lift is an excellent choice for use in all repair work that arises.
Load capacity: 3.500 kg
Punch spacing: 1.300 mm
Underswing height: 98 mm
Installation depth: 2.450 mm
Oil quantity: 10 L
Connected load: 2 KW
The lifted vehicle is almost unrestrictedly accessible, ensuring optimum working conditions.
The swivel arm system offers the greatest possible pickup variety.
The version with 1,300 mm punch spacing is suitable when space in the workshop is limited.
Features:
- Redundant design due to two independent hydraulic cylinders
- Anti-rotation device over the entire stroke path
- All forces are absorbed by the foundation frame
- Drive unit and all components easily accessible
- Large recording area
- Minimum space requirement
JAB lifts for Cars & Vans - benefit from our lifting tech experience in your workshop.
In our extensive product range in the field of car lifts and van lifts, load capacities from 3 tonnes to 6.5 tonnes are available.
Numerous available carrier-bridges, from single-ram, double-ram to multi-ram versions, cover all different applications.
We will be happy to advise you on solutions that are suitable for your area, your workshop or your service point.
