Finding Lifts made easy –
from 3,0 to 6,5 tons
Lifting platforms for motorcycles, cars, vans – and much more.
With us, you can lift it all! Thanks to various lifting systems, all kinds of requirements for car and van lifts can be met.
JAB vehicle lifts are used worldwide in workshops and on production lines of renowned automobile manufacturers.
Our Lift Finder for passenger cars and vans helps you easily find the right product solution for your needs – from 1-Ram, 2-ram, or Multiram systems to load capacity and installation type. Whether ceiling installation or individual concrete foundation – we have the right solution for every situation.
We are happy to answer your questions. Get in touch with us – we look forward to hearing from you!
Lift Finder
Cars & Vans to 6,5 tons

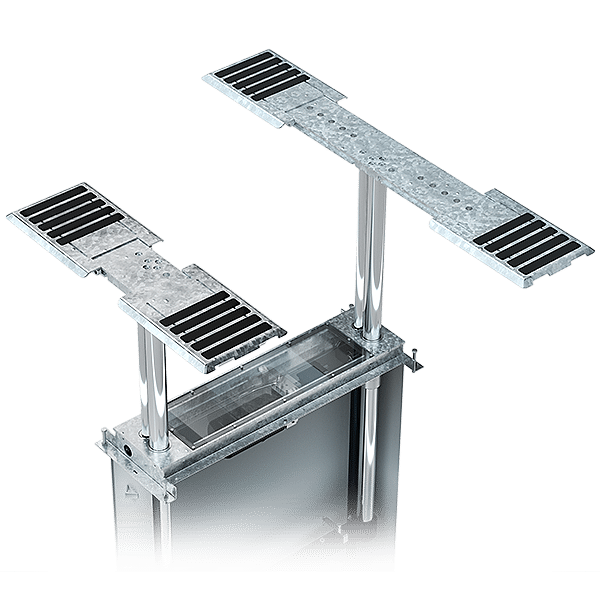

TwinRam 35
Load capacity: 3.500 kg
Punch spacing: 1.300 mm
Traversing height: 68 mm
Installation depth: 2.350 mm
TwinRam 35 XY
Load capacity: 3.500 kg
Punch spacing: 1.300 mm
Traversing height: 68 mm
Installation depth: 2.350 mm
TwinRam 35 S2/2500
Load capacity: 3.500 kg
Punch spacing: 2.500 mm
Underswing height: 98 mm
Installation depth: 2.350 mm

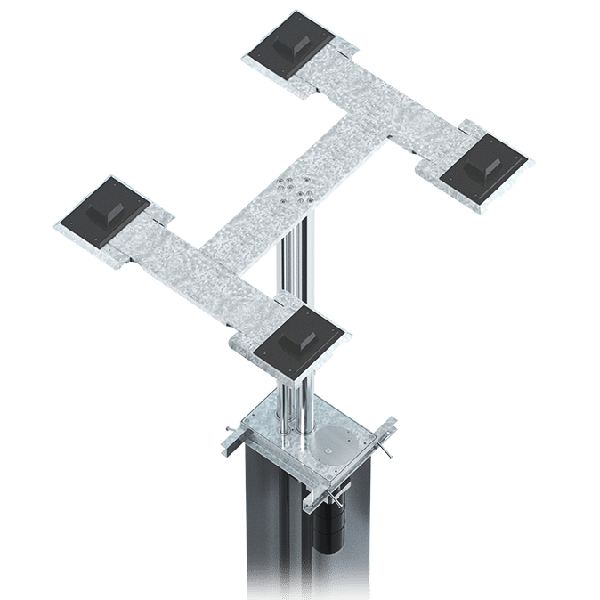

DuoRam HK 35
Load capacity: 3.500 kg
Punch spacing: 1.880 mm
Traversing height: 59 mm
Installation depth: 2.350 mm
DuoRam K36.2
Load capacity: 3.500 kg
Punch spacing: 1.880 mm
Traversing height: 109 mm
Installation depth: 2.350 mm

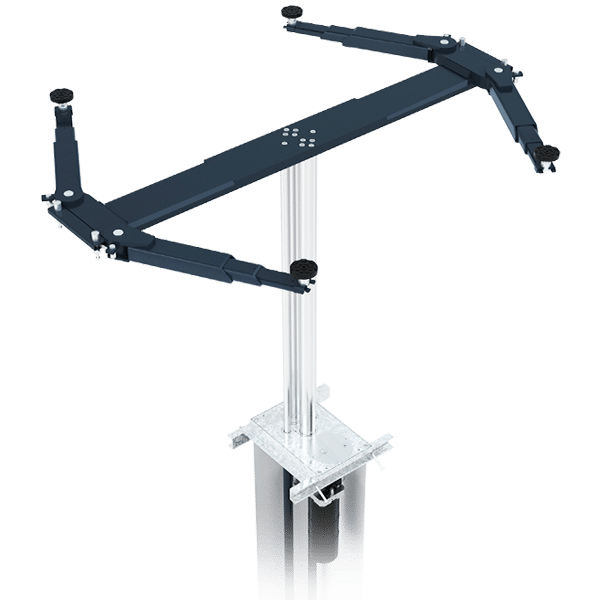

DuoRam K35-S2
Load capacity: 3.500 kg
Punch spacing: 1.880 mm
Traversing height: 50 mm
Installation depth: 2.350 mm

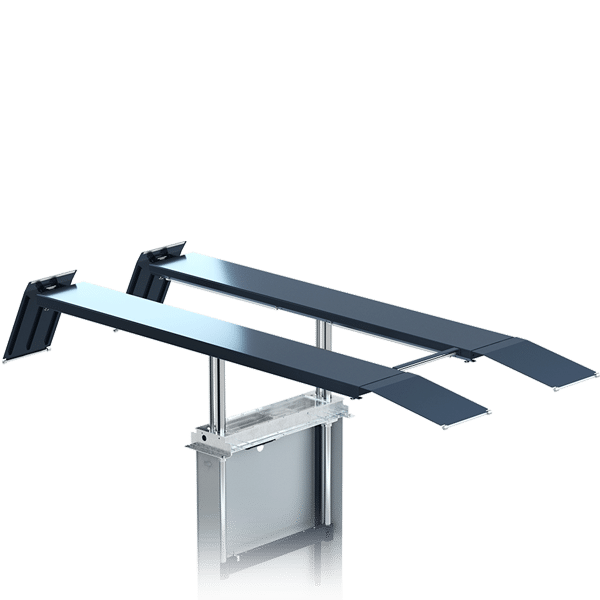

TwinRam 35 A/1500
Load capacity: 3.500 kg
Punch spacing: 1.500 mm
Drive-up height: 150 mm
Installation depth: 2.350 mm

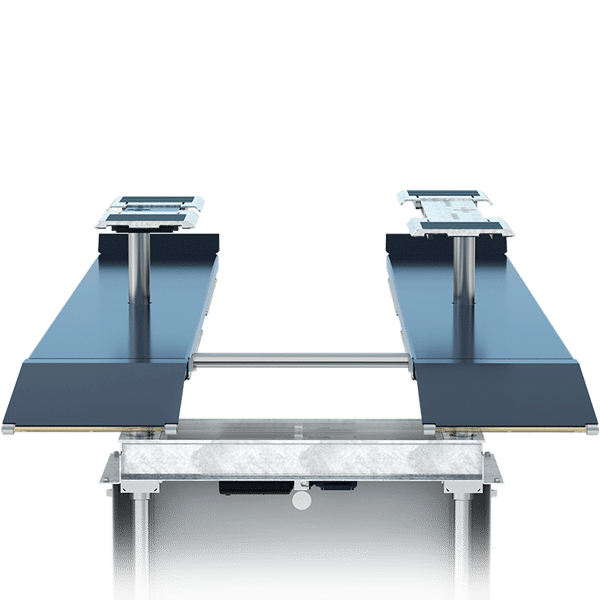

TwinRam 350 A/N
Load capacity: 3.500 kg
Punch spacing: 1.500 mm
Drive-up height: 150 mm
Installation depth: 2.350 mm
QuattroRam 65 A/N-S2
Load capacity: 6.500 kg
Punch spacing transverse: 1.500 mm
Punch spacing longitudinal: 4.120 mm
Installation depth: 2.350 mm
TwinRam 35 AE 2300
Load capacity: 3.500 kg
Punch spacing: 2.300 mm
Drive-up height: 20 mm
Installation depth: 2.350 mm

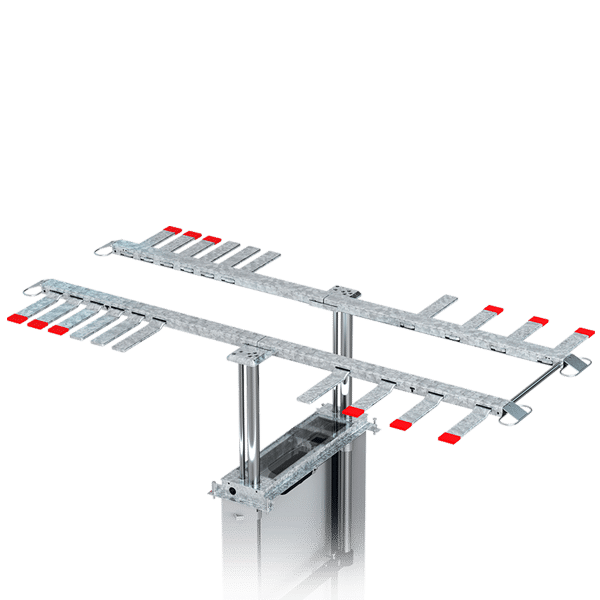

TwinRam 35 AE 1300
Load capacity: 3.500 kg
Punch spacing: 1.300 mm
Drive-up height: 20 mm
Installation depth: 2.350 mm

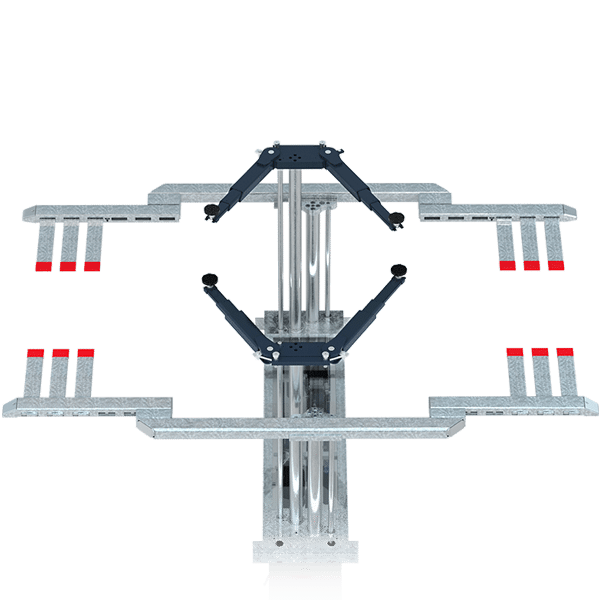

TwinRam 35 AE-S2
Load capacity: 3.500 kg
Punch spacing transverse: 2.500 mm
Punch spacing longitudinal: 2.300 mm
Installation depth: 2.350 mm

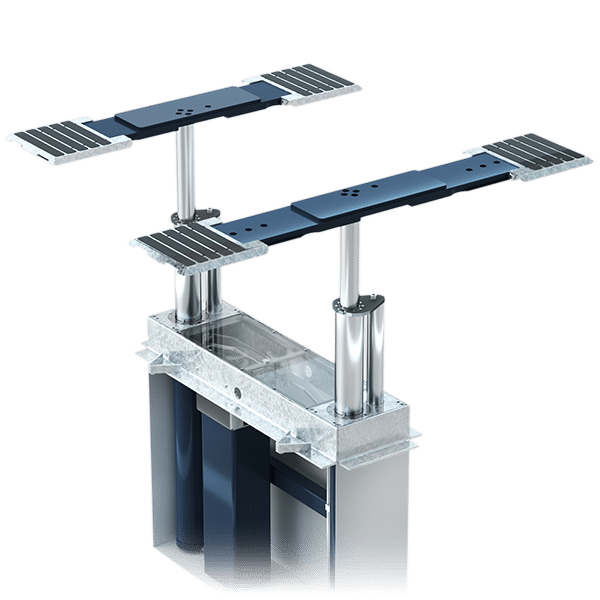

TwinRam 35 Tele
Load capacity: 3.500 kg
Punch spacing: 1.300 mm
Traversing height: 65 mm
Installation depth: 1.280 mm
TwinRam 35 S2/2300 Tele
Load capacity: 3.500 kg
Punch spacing: 2.300 mm
Underswing height: 108 mm
Installation depth: 1.280 mm
TwinRam 35 XY-VH Tele
Load capacity: 3.500 kg
Punch spacing: 1.300 mm oder 1.700 mm
Traversing height: 68 mm
Installation depth: 1.280 mm

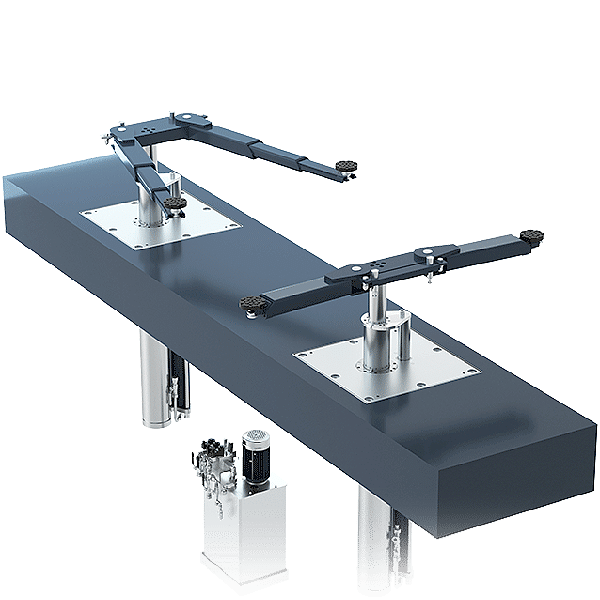

TwinRam 35 S2 VH-Tele
Load capacity: 3.500 kg
Punch spacing: 2.300 mm
Underswing height: 108 mm
Installation depth: 1.280 mm

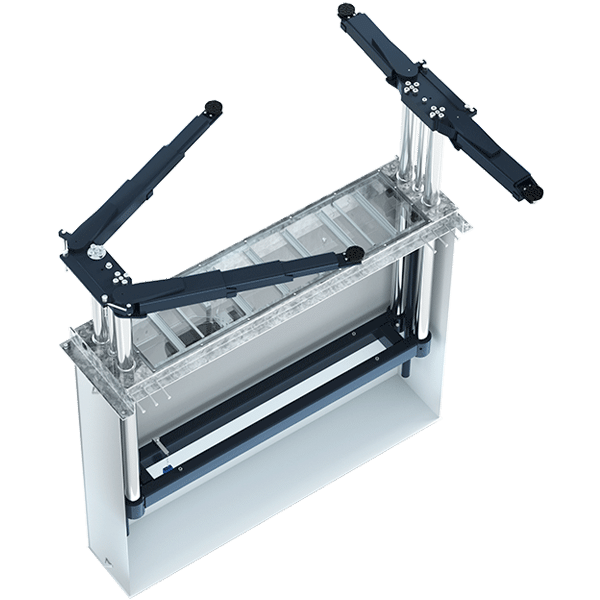

TwinRam 55 S2/2500
Load capacity: 5.500 kg
Punch spacing: 2.500 mm
Underswing height: 97 mm
Installation depth: 2.350 mm

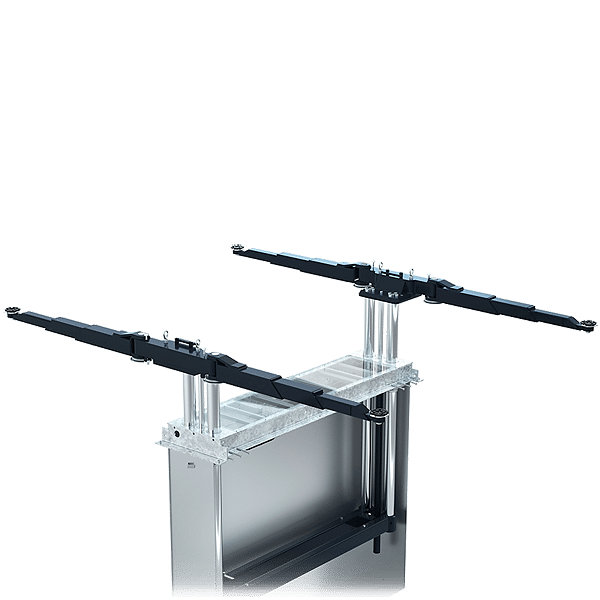

TwinRam 65.1 S2/2500
Load capacity: 6.500 kg
Punch spacing: 2.500 mm
Installation depth: 2.450 mm

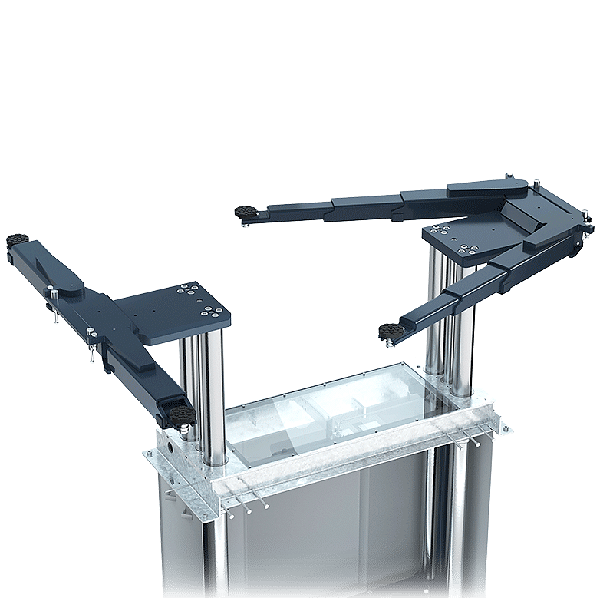

TwinRam 55 S2/1500
Load capacity: 5.500 kg
Punch spacing: 1.500 mm
Underswing height: 97 mm
Installation depth: 2.450 mm

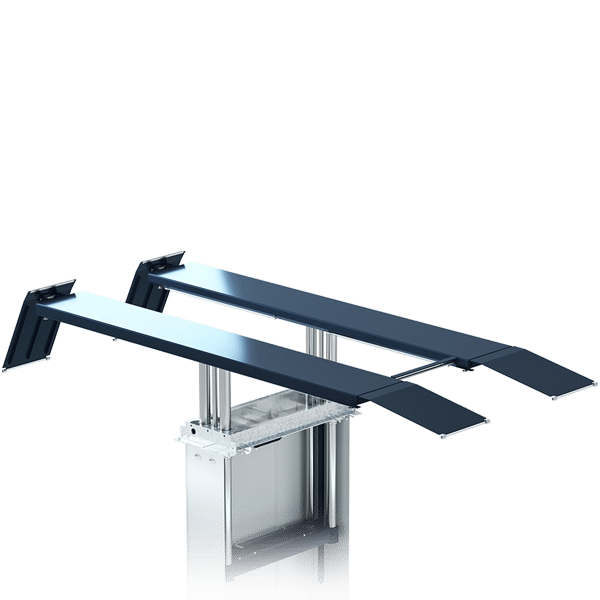

TwinRam 50.1 A/1500
Load capacity: 5.000 kg
Punch spacing: 1.500 mm
Drive-up height: 175 mm
Installation depth: 2.350 mm
QuattroRam 65 A-Align
Load capacity: 6.500 kg
Punch spacing transverse: 1.500 mm
Punch spacing llongitudinal: 4.500 mm
Installation depth: 2.350 mm

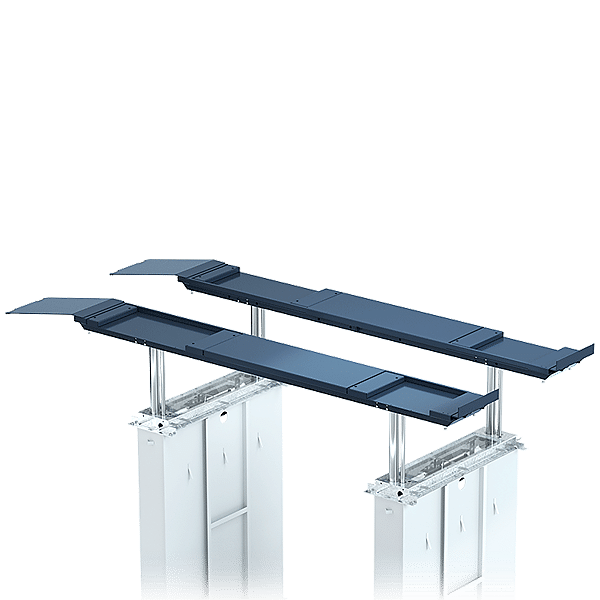

QuattroRam 40A-Align
Load capacity: 4.000 kg
Punch spacing transverse: 1.500 mm
Punch spacing longitudinal: 2.800 mm
Installation depth: 2.350 mm

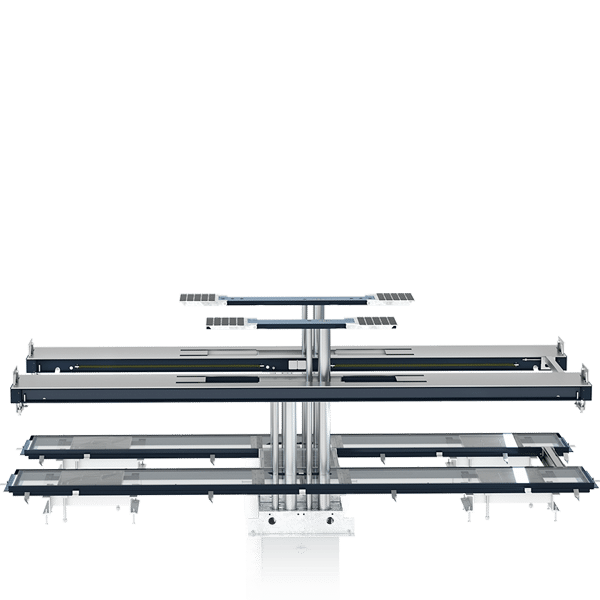

TwinRam 350 AN de luxe
Load capacity: 3.500 kg
Punch spacing: 1.500 mm
Installation depth: 2.350 mm

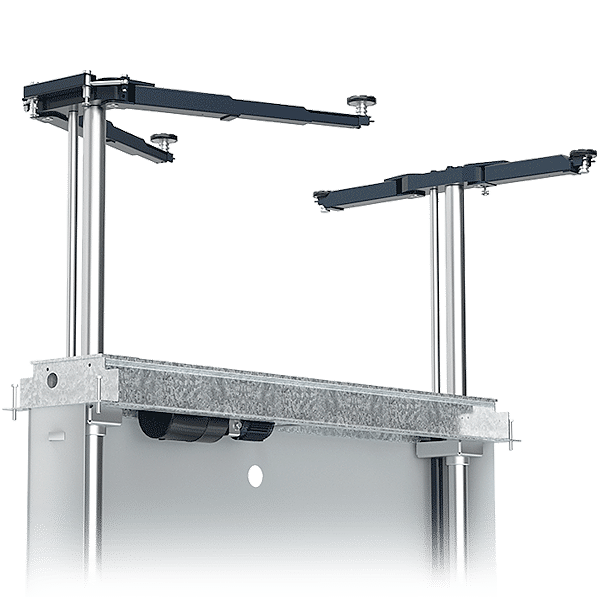

TwinRam 35 S2/2300
Load capacity: 3.500 kg
Punch spacing: 2.300 mm
Underswing height: 98 mm
Installation depth: 2.350 mm
TwinRam 35 S2/1300
Load capacity: 3.500 kg
Punch spacing: 1.300 mm
Underswing height: 98 mm
Installation depth: 2.450 mm

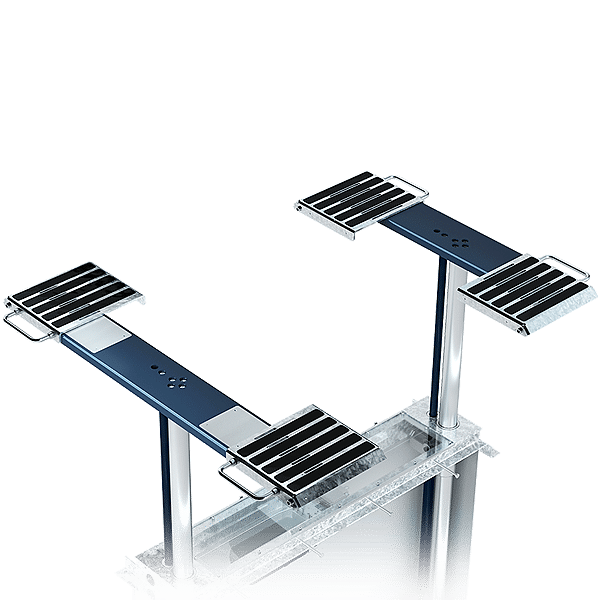

TwinRam 35 XY/1700
Load capacity: 3.500 kg
Punch spacing: 1.700 mm
Traversing height: 68 mm
Installation depth: 2.350 mm
Installation TwinRam in floor slabs
This product is individually configurable.
Please contact us and together we will find the right solution for your requirements.
DuoRam K23/3
Load capacity: 3.000 kg
Lifting height: 1.880 mm
Traversing height: 87 mm
Installation depth: 2.350 mm

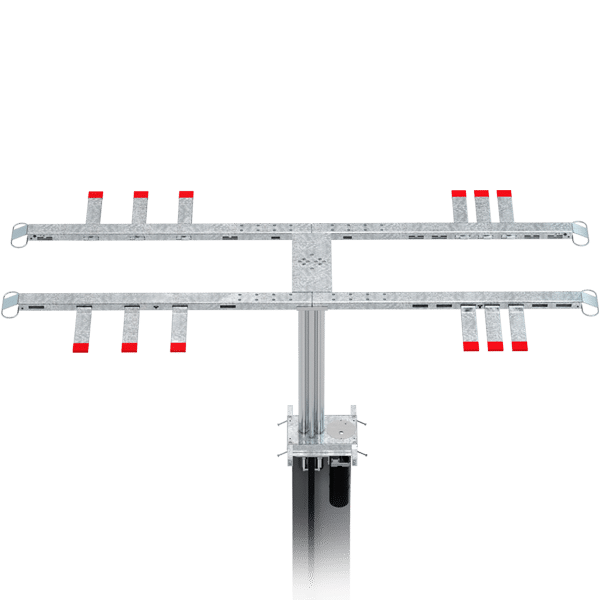

DuoRam AE 35
Load capacity: 3.500 kg
Lifting height: 1.880 mm
Traversing height: 80 mm
Installation depth: 2.350 mm
Multi-Workstations
DuoRam und TwinRam Lifts for Multi Workstations, with installation in continuous concrete shaft, this product is individually configurable.
Please contact us – we will be happy to advise you.
